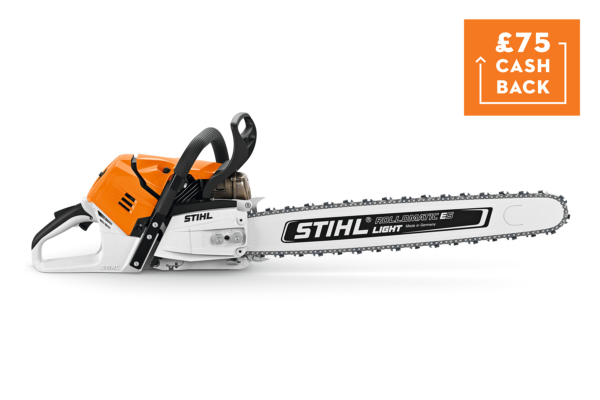

STIHL MS 500i-W Petrol Chainsaw
SKU: MS 500i-W
STIHL MS 500i-W Petrol Chainsaw
SKU: MS 500i-W
£1,323.88
Ex VAT
£1,588.65
Inc VAT
Categories:
The STIHL MS 500i-W Petrol Chainsaw is a revolutionary professional petrol chainsaw featuring the world’s first electronically controlled fuel injection system and heated handles for cold-weather operation. Delivering an impressive 5.0kW of power and an exceptional power-to-weight ratio, it is designed for professional forestry, large timber harvesting and demanding tree work.
The STIHL MS 500i-W Petrol Chainsaw is one of the most advanced professional forestry chainsaws available, combining groundbreaking fuel injection technology with outstanding cutting performance and cold-weather comfort. Designed for professional foresters, harvesting contractors and arborists, the MS 500i-W delivers exceptional power, rapid acceleration and outstanding handling when tackling large timber.
As the world’s first chainsaw with electronically controlled fuel injection, the MS 500i-W sets a new standard for performance. The innovative STIHL Injection system continuously monitors operating conditions and automatically adjusts fuel delivery and ignition timing to provide optimum performance regardless of temperature, altitude or other environmental factors.
Producing 5.0kW of power, the MS 500i-W offers an outstanding power-to-weight ratio of just 1.24kg per kW, making it one of the lightest professional saws in its class. The result is a machine that delivers huge cutting performance while remaining agile and easy to manoeuvre during demanding forestry operations.
Unlike conventional carburettor-equipped chainsaws, the MS 500i-W features an exceptionally simple starting procedure. There is no separate starting position required, making operation quicker and more intuitive, while the electronically controlled fuel injection system ensures reliable starting and optimum running characteristics under all conditions.
The W version is equipped with electrically heated handles, providing improved comfort and control when working in cold or frosty weather. The maintenance-free heating elements help keep hands warm and maintain a secure grip, even during long winter working days.
With optimised bumper spikes, a redesigned sprocket cover, STIHL anti-vibration technology and advanced engine management, the MS 500i-W delivers an exceptional combination of power, control and operator comfort.
Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.
Table of specifications
Displacement
79.2 cm³
Power
5 kW
Engine power
6.80 HP
CO2
706 g/kWh
Device weight without refuelling
6.3 kg 1)
System weight without refuelling
7.88 kg 2)
Power-to-weight ratio
1.26 kg/kW
Bar length
63cm / 25"
Saw chain pitch
3/8 "
Device length with bumper spike
468 mm 1)
Sound pressure level
106 dB(A) 4)
Sound power level
117 dB(A) 4)
Vibration level, left
4.2 m/s² 5)
Vibration level, right
4 m/s² 5)
Technical Notes
1)
without guide bar and saw chain
2)
with guide bar and saw chain
3)
The actual cutting length is shorter than the specified bar length
4)
K-value according to Directive 2006/42/EC = 2.0 dB(A)
5)
K-value according to RL 2006/42/EG = 2 m/s²
FEATURES
Side-Mounted Chain Tensioning
The side-mounted chain tensioner allows fast and safe chain adjustment without working near the sharp chain.
STIHL Injection Technology
The advanced injection system continuously calculates the correct fuel quantity and ignition timing. Sensors monitor: Air pressure Internal temperature External temperature Providing optimum engine performance in varying working conditions.
Electrically Heated Handles
The integrated heated handle system improves comfort and control during cold weather operation. Benefits include: Warm hands in winter conditions. Improved grip. Increased comfort. Reduced cold-weather fatigue.
Sensor-Controlled Fuel Metering
Intelligent sensors constantly monitor engine conditions and automatically adjust fuel delivery to ensure: Smooth running, Reliable performance, Excellent throttle response, Efficient operation.
Simplified Starting System
The fuel injection system eliminates the need for a dedicated starting position.
Tool-Free Fuel Caps
The fuel and oil tanks feature practical tool-free bayonet caps for quick and convenient refuelling.
STIHL Ematic Lubrication System
The STIHL Ematic system ensures chain oil is delivered precisely where required. Benifits include: Reduced oil consumption, Enhanced chain lubrication, Improved cutting performance, Lower operating costs.
Captive Bar Nuts
The sprocket cover nuts remain attached during maintenance, helping prevent loss when changing chains or servicing the saw.
Plunge Guide
The integrated plunge guide assists with accurate plunge cuts by helping maintain the correct cutting direction.
Optimised Bumper Spikes
The redesigned bumper spikes provide a stronger bite into timber when felling and cross-cutting.
Manual Decompression Valve
The decompression valve reduces cylinder pressure during starting, making the chainsaw easier to start and reducing strain on the starting system.
STIHL Anti-Vibration System
Anti-vibration elements reduce vibration transfer to the handles. Increases user comfort, reduced fatigue, improved control, greater productivity during long working days
