Description

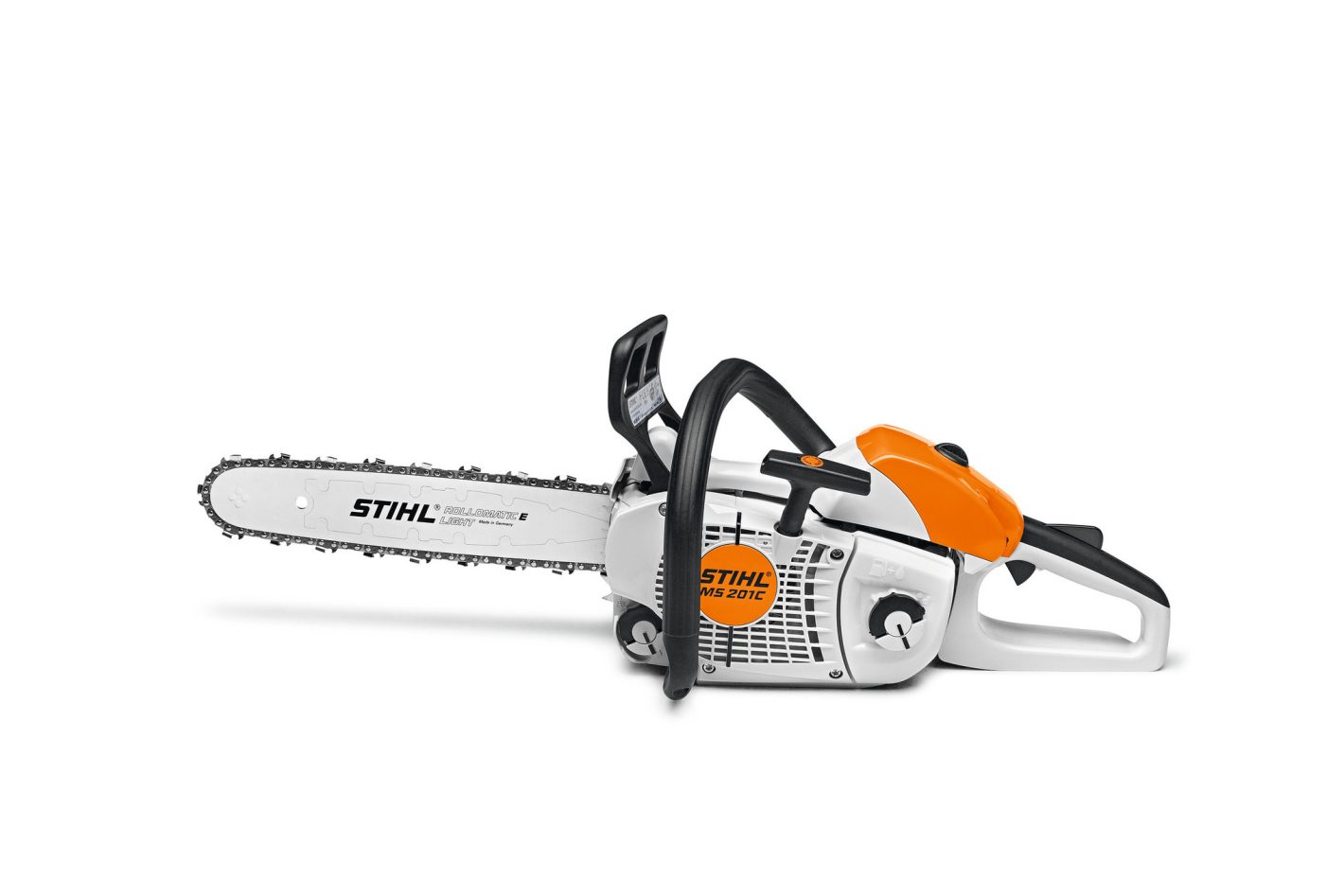

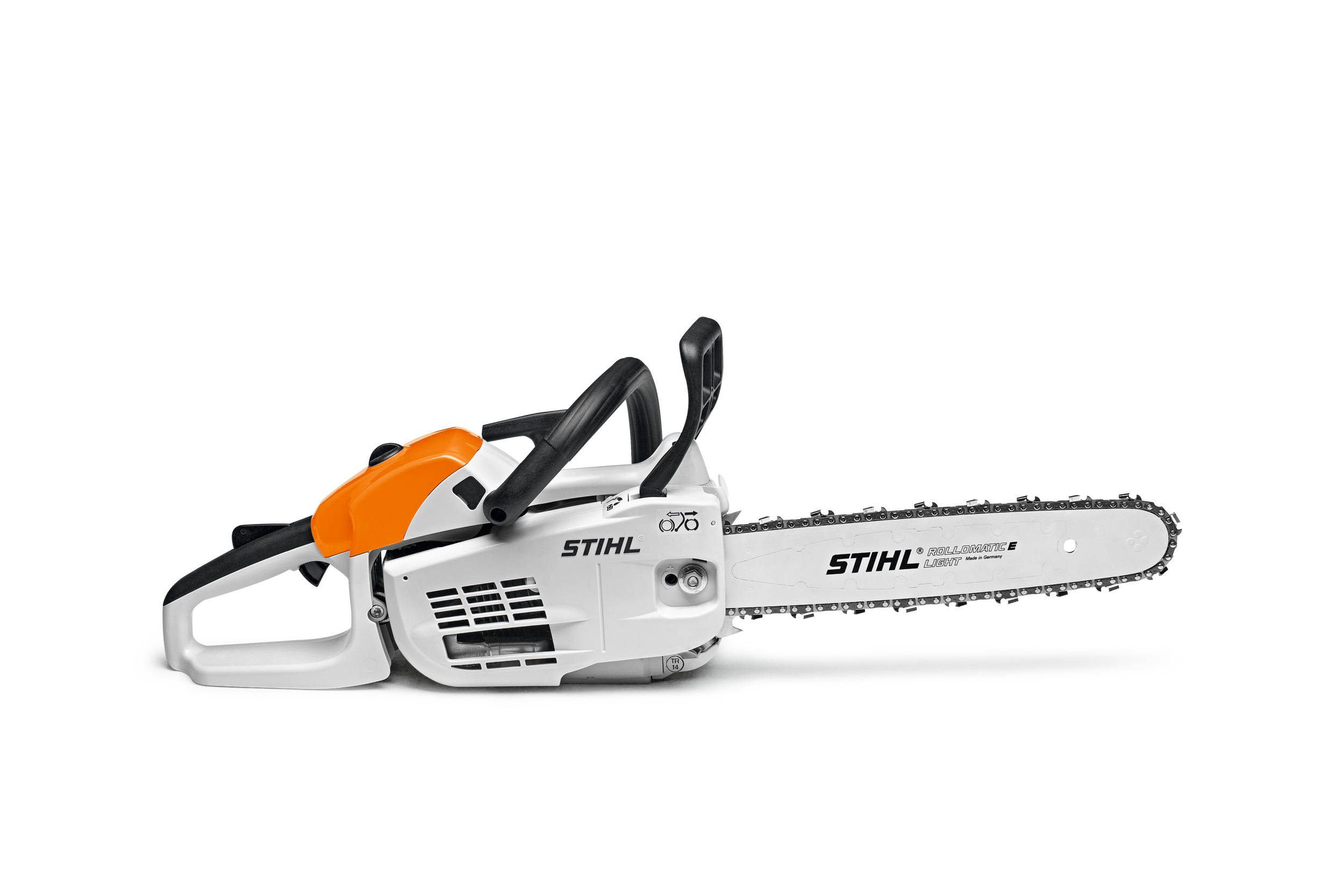

MS 201 C-M PETROL CHAINSAW: COMPACT AND POWERFUL 1.8KW PROFESSIONAL CHAINSAW
Light, agile and designed for precision, the upgraded STIHL MS 201 C-M is fitted with the new version of the economic 2-MIX engine, making it ideal for harvesting thin wood, limbing and tending young stands.
The new 2-MIX engine consists of a new cylinder, piston and exhaust as well as an upgrade the M-Tronic system – M-Tronic 3.0. With its compact construction, reduced emissions, efficient engine management system, extremely low weight and fantastic manoeuvrability, it is great to handle while offering impressively high lugging power despite its low weight.
Designed for use in agriculture, forestry, gardening and landscaping operations, this light pro saw provides a high cutting and plunging performance.
Instruction is necessary to recognize or assess the dangers of a chainsaw. Please wear protective clothing and equipment.
Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.
- The lightest professional petrol chainsaw from STIHL
- Perfect for delimbing work in forestry
- Easy starting and optimised engine performance with STIHL M-Tronic
- 3/8” PS saw chain with excellent cutting performance
TECHNICAL DETAILS
| Bar length | 30-35 cm |
| Bar length | 12-14 in |
| Displacement | 35.2 cm³ |
| Capacity | 2.15 cu-in |
| Power output | 1.8/2.4 kW/bhp |
| Rollomatic E, cutting length | 35 cm |
| Weight | 4 kg 1) |
| Tank volume | 0.31 l |
| Speed at maximum power | 10500 rpm |
| Bumper spike | Steel spike |
| Power-to-weight ratio | 2.2 kg/kW |
| Cylinder | 4 channel / chrome |
| Filter material | Plastic mesh |
| Oil pump | Not adjustable |
| Filter | Standard filter |
| Sprocket | Sprocket profile |
| Chain tensioning | Side-chain tension |
| Anti vibration system | Standard AV-System |
| Weight | 4.58 / 4.68 kg 2) |
| Handle type | Standard grip |
| Exhaust | Standard silencer |
| Filler cap | Tool-free filler cap |
| Chain pitch | 3/8″ P |
| Carburettor | Compensator / carburettor heating / flushing template / STIHL M-Tronic |
| Sound pressure level | 99 dB(A) 3) |
| Oil tank volume | 220 cm³ |
| Sound power level | 112 dB(A) 3) |
| Vibration values left/right | 3.3/3.3 m/s2 4) |
| STIHL Oilomatic saw chain pitch/type | 3/8″ P |
| CO² | 728 g/kWh |
