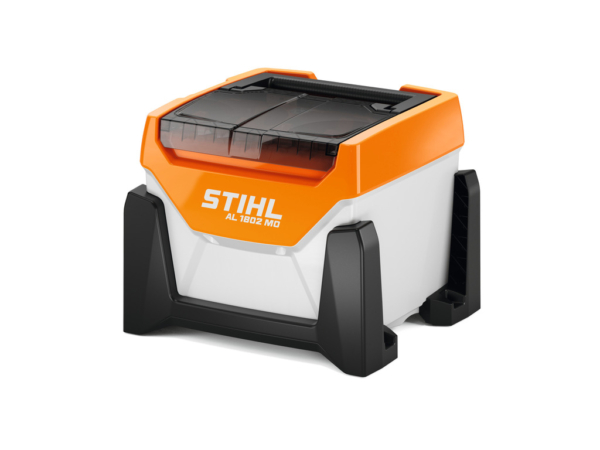

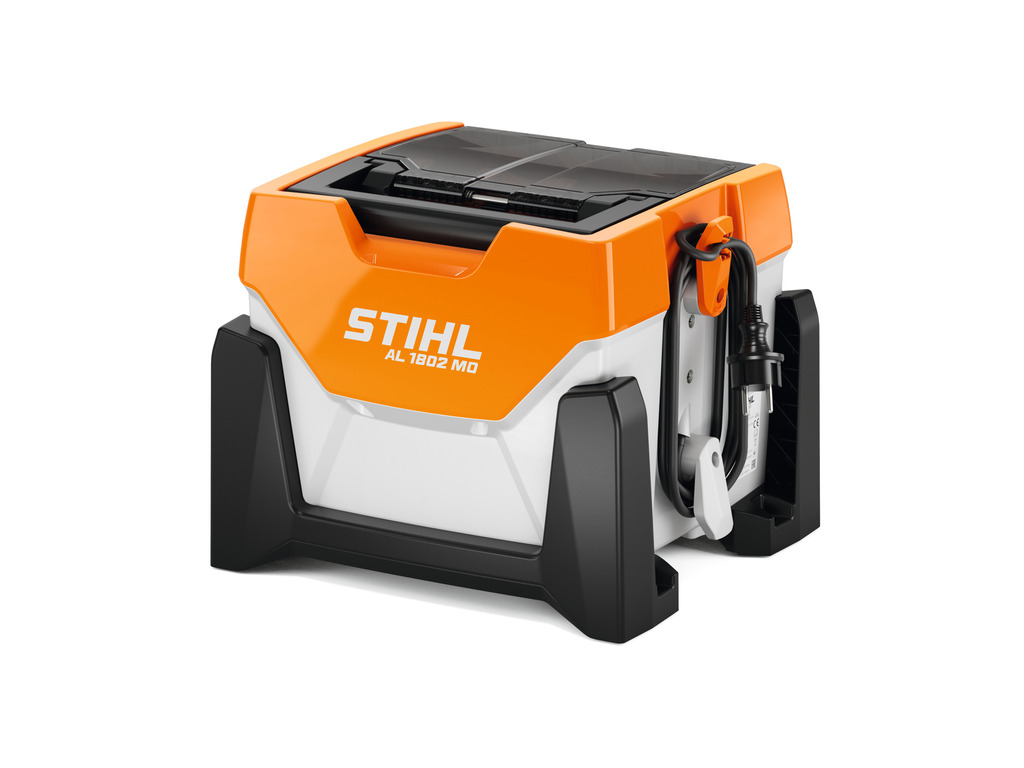

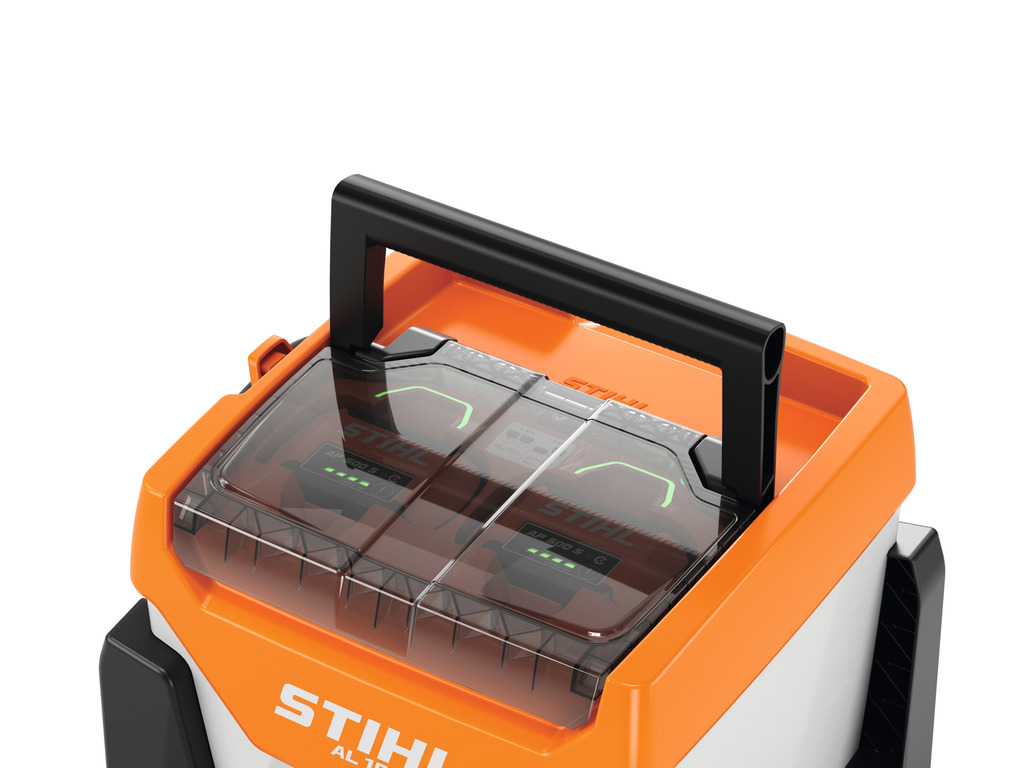

STIHL AL 1802 MO Dual High-Speed Charger for ALLPRO/AP Batteries

SKU: AL 1802 MO

STIHL AL 1802 MO Dual High-Speed Charger for ALLPRO/AP Batteries

SKU: AL 1802 MO

Ex VAT

Inc VAT

Categories:

The STIHL AL 1802 MO High-Speed Charger is a powerful dual-battery charging solution designed for professional users of the STIHL ALLPRO/AP System. Delivering up to 1800W charging power and 42A output, it enables ultra-fast charging of ALLPRO/AP batteries both in the workshop and on-site, even in outdoor and mobile working environments.

The STIHL AL 1802 MO Dual High-Speed Charger is an advanced professional charging system developed for users who rely on STIHL cordless equipment throughout the working day and require minimal charging downtime.

Designed for use in workshops, service vehicles, construction sites, forestry operations, landscaping businesses and remote working environments, the AL 1802 MO provides exceptional charging performance and flexibility. Unlike conventional battery chargers, it is specifically engineered to operate in outdoor conditions and is suitable for use in the rain, at jobsites and whilst travelling between locations.

Reduce downtime and maximise productivity with the STIHL AL 1802 MO High-Speed Charger. Its powerful 1800W charging performance allows compatible ALLPRO Performance batteries to reach 80% charge in as little as 9 minutes*. Combined with a portable power supply, the charger makes it possible to continuously rotate a small number of batteries, helping maintain workflow even on demanding jobsites.

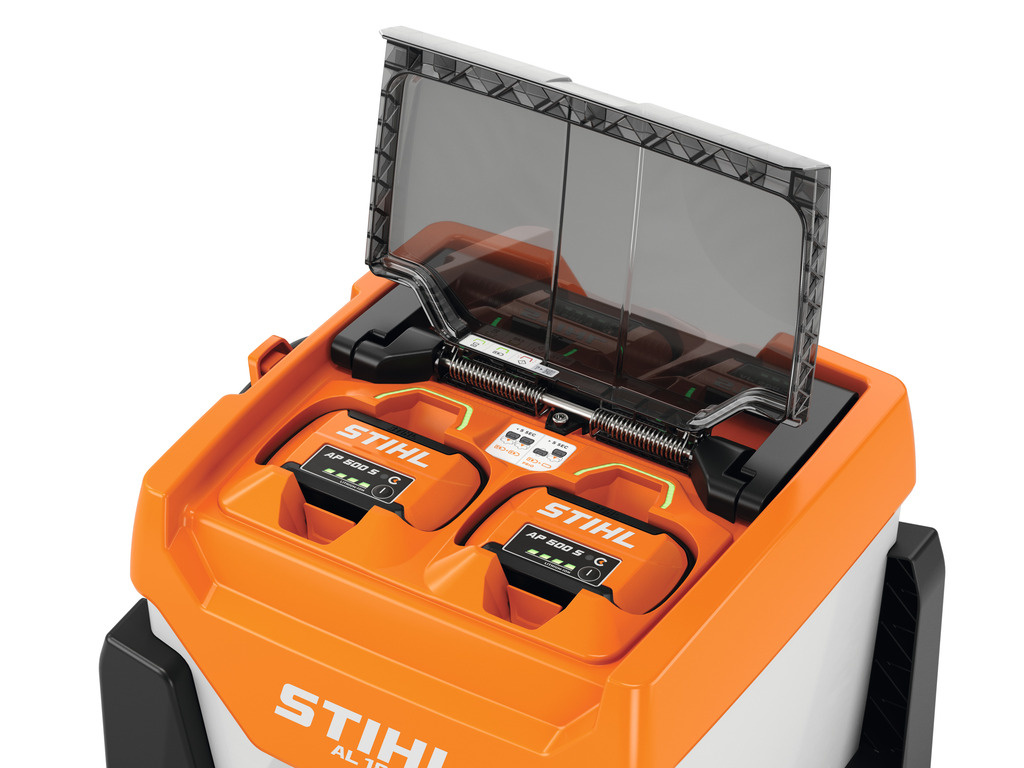

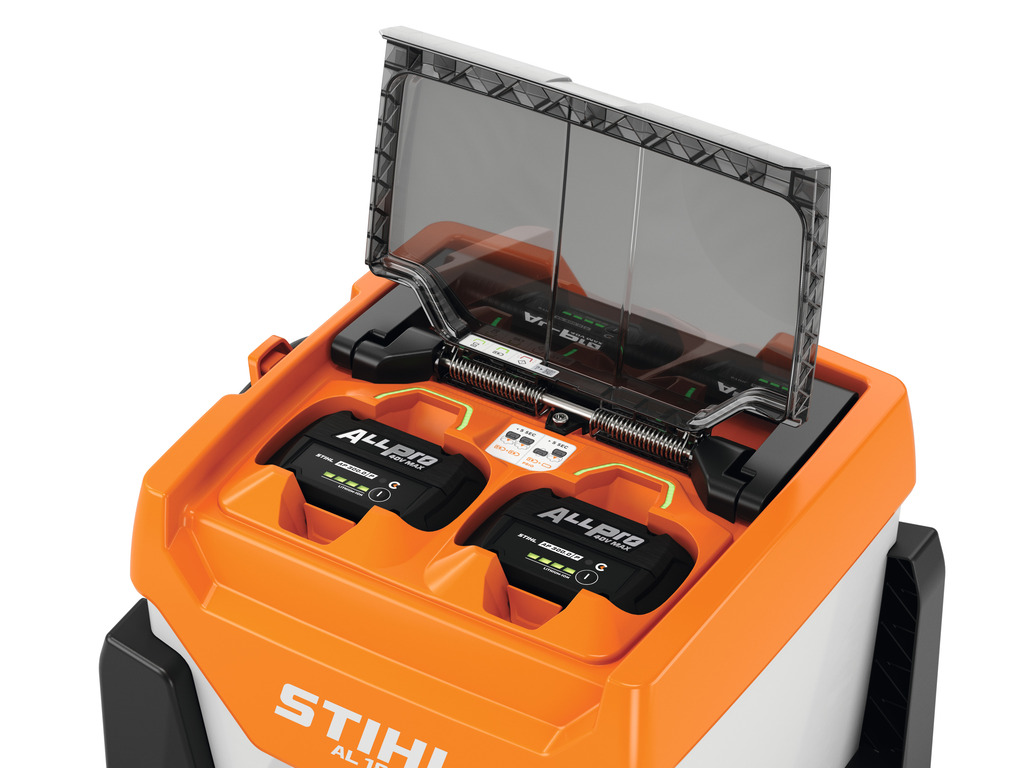

The charger features two charging slots, allowing flexible charging modes depending on operational requirements:

Sequential Charging (Single Slot Mode)

When batteries are inserted more than five seconds apart, the first battery is prioritised and charged at up to 42A then once fully charged starts charging the second battery. During this process, both batteries benefit from active cooling to maintain optimum charging performance and battery health.

Simultaneous Dual Charging (Dual Slot Mode)

When two batteries are inserted within five seconds of one another, both batteries charge simultaneously at 21A per slot, providing efficient dual-battery charging when multiple batteries require replenishment.

This intelligent charging management ensures users always benefit from the most effective charging strategy for their workflow.

Built for demanding professional environments, the AL 1802 MO supports charging of both ALLPRO/AP batteries and STIHL AR L backpack batteries when used with the appropriate connecting cable and adapter. This makes it an ideal solution for users operating a wide range of professional STIHL cordless equipment.

The charger is particularly effective when paired with solutions such as the STIHL PS 2000 Portable Power Supply, enabling continuous battery cycling and virtually uninterrupted working throughout the day.

Whether charging batteries in a forestry operation, grounds maintenance fleet, mobile workshop or landscaping business, the AL 1802 MO delivers the speed, reliability and flexibility expected from STIHL’s professional cordless platform.

Table of Specifications

Rated voltage

220-240 V

Rated current

8.6 A

Power consumption

2000 W

Weight

7.2 kg

Charging current

42 A

Charging power

1785 W

Width

354 mm

Length

315 mm

Working Times SINGLE SLOT (MAX. 42 A) 80% / 100%

ALLPRO AP 20.1

25 / 40 mins

ALLPRO AP 30.1

30 / 45 mins

ALLPRO AP 100 P

9 / 20 mins

ALLPRO AP 200 P

9 / 20 mins

ALLPRO AP 300 P / PC

9 / 20 mins

AP 100

30 / 40 mins

AP 200

30 / 40 mins

AP 200.0 S

15 / 40 mins

AP 300

25 / 35 mins

AP 300.0 S

15 / 35 mins

AP 500.0 S**

15 / 40 mins

AR 2000 L

115 / 165 mins

AR 2000.0 L

100 / 140 mins

AR 3000 L

175 / 235 mins

AR 3000.0 L

110 / 150 mins

Working Times DUAL SLOT (MAX. 21 A) 80% / 100%

ALLPRO AP 20.1

25 / 40 mins

ALLPRO AP 30.1

30 / 45 mins

ALLPRO AP 100 P

9 / 20 mins

ALLPRO AP 200 P

12 / 25 mins

ALLPRO AP 300 P / PC

9 / 30 mins

AP 100

30 / 40 mins

AP 200

30 / 40 mins

AP 200.0 S

15 / 40 mins

AP 300

25 / 35 mins

AP 300.0 S

15 / 35 mins

AP 500.0 S**

15 / 42 mins

AR 2000 L

115 / 165 mins

AR 2000.0 L

100 / 140 mins

AR 3000 L

175 / 235 mins

AR 3000.0 L

110 / 150 mins

Technical Notes

*

Time taken to reach 80% charge at ambient/battery temperatures of 25–40 °C when used with the AL 1802 MO. Applies to ALLPRO Performance batteries AP 100 P, AP 200 P and AP 300 P(C).

**

In dual slot mode, the AP 500.0 S has a slightly longer charging time due to limited available charging current.

Features

Ultra-Fast Charging Performance

With a charging output of up to 1800W and 42A charging current, the AL 1802 MO delivers exceptionally fast battery charging. Ideal for professionals who rely on cordless equipment throughout the day.

Charge to 80% in as Little as 9 Minutes

Compatible ALLPRO Performance batteries can reach 80% charge in approximately 9 minutes. Helping maintain productivity and reduce waiting times between tasks.
