Description
The Power of Technology

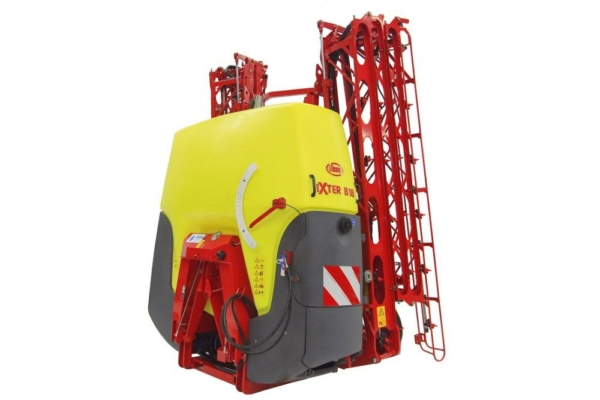

The Vicon iXter B mounted sprayer is the fruit of years of research and development in close collaboration with farmers: this is today the most advanced mounted sprayer range with focus on user friendliness and environmental protection. The iXter B range is available with four different tank volumes from 1000 up to 1800 litres and two boom alternatives (HOSA, HC) from 15 to 30m. Pumps are available with capacities of 150, 200 and 260 l/min. Liquid fertiliser resistant and capable of running dry without damage. Due to the Easy Hitch quick hitch, the gravity point of the sprayer is extremely close to the tractor for a maximum weight transfer. However, the hitching operation remains quick and easy. High tech features like iXclean, IsoMatch Tellus, IsoMatch Tellus GO, Starguide IV, IsoMatch GEOCONTROL and a lot more features are available for more operator comfort.
The Advantages:
- HC steel booms or HOSA aluminium spray boom available
- Fully integrated concept, including Easy Set control panel
- ISOBUS or non ISOBUS compatible regulations systems
- iXclean: every litre counts!
- Possible in combination with IsoMatch GEOCONTROL
- Possible in combination with the iXtra front tank
Technical Specifications
iXter | B10 | B13 | B16 | B18 |
Nom. tank capacity | 1000 (l) | 1300 (l) | 1600 (l) | 1800 (l) |
Max. tank capacity | 1100 (l) | 1450 (l) | 1800 (l) | 2000 (l) |
Chemical inductor | 30 (l) | 30 (l) | 30 (l) | 30 (l) |
Clean water tank | 180 (l) | 180 (l) | 180 (l) | 180 (l) |
Hand wash tank | 18 (l) | 18 (l) | 18 (l) | 18 (l) |
Pumps | 150/200/260 (l/min) | 150/200/260 (l/min) | 150/200/260 (l/min) | 150/200/260 (l/min) |
Regulation Systems | EC/FMC//iM Tellus/iM Tellus GO | EC/FMC/iM Tellus/iM Tellus GO | EC/FMC/iM Tellus/iM Tellus GO | EC/FMC/iM Tellus/iM Tellus GO |
iXclean | iXclean Comfort or Pro | iXclean Comfort or Pro | iXclean Comfort or Pro | iXclean Comfort or Pro |
Spray Booms
HC 18-20-21-24-27-28-30m Vertical Folding Steel Boom
- The HC boom is the multi-talented boom in the steel boom range. The triangular steel construction and the unique anti yaw system allow high speed even in very difficult conditions. The HC boom is giving you the functionalities for one side folding, symmetrical reduction and asymmetrical reduction depending of the choice for the electric hydraulic command.
HOSA 15m “Z” Folding Aluminium Boom
- The HOSA spray boom is an unique boom of the aluminium boom family having an advanced Z-folding principle: the lateral movement enables you to quickly reduce boom width and pass obstacles in the field. The aluminium profile is designed for maximum resistance. No welding provides remarkable strength, the anodised hardened surface protects against scratches and corrosion.
Fully Integrated Concept
Full Integration Concept
Nobody would expect all these functions so easily to hand. Better protection and integration is simply not possible. iXter B is setting a new standard!
Easy Set Control Panel
The Easy Set control panel makes life easy by its intuitive operation. The controls are separated to a suction and pressure side. The valves are well protected behind the door: this keeps your operational area free of dirt and pesticides.

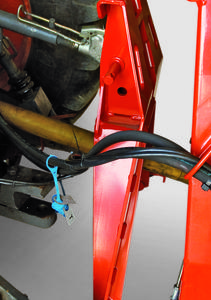

Easy Hitch Makes Life Easy
There is enough space to connect the PTO shaft and the hydraulic and electric cables. An ingenious locking system secures the machine and shows the operator it has connected correctly.
Easy Operation
The graduated chemical inductor with a capacity of 20 litres is mounted on rails and fully integrated in the frame. In storage position the inductor is sealed against the top plate and no cover is needed. The rotating canister cleaning nozzle releases the water when pushed downwards. The circular rinsing system is no add on: it is part of the design! The standard return flow agitation with its unique agitation tube keeps the tank mixture agitated. The turbo agitation system (optional) allows powerful mixing during preparation of the mixture. This is especially helpful when powders are used or after sedimentation during a longer period of interruption.
Other Sprayer Features
ISOBUS intelligence (FMA regulater only)
You are ensured of the ISOBUS compatibiliy from tractor to the sprayer and sprayer to tractor, meaning that all data collection from your machine(s) is centralised and can be easily transferred to your Terminal (e.g. IsoMatch Tellus) in your tractor cabin. Easy plug and play!
Boom Guide Comfort
Two ultrasonics sensors on the boom can control the spray height via the central slope correction and boom lift functions. This cost effective system is suited to gentle slopes and uneven crop conditions.
Boom Guide Pro
This advanced system used three ultrasonic sensors to control left- and right-hand boom sections independently for the ultimate guidance in the most challenging field conditions. It can deliver positive and negative lateral movement on each side of the boom to follow the contours in every condition!
Starguide IV: Automatic GPS section control and guidance by D-GPS
Those who have used it will never go back. Starguide IV will change your spraying days forever: spray around the headland and the Starguide IV will control the spray sections automatically as you can cover the remainder of the field.
