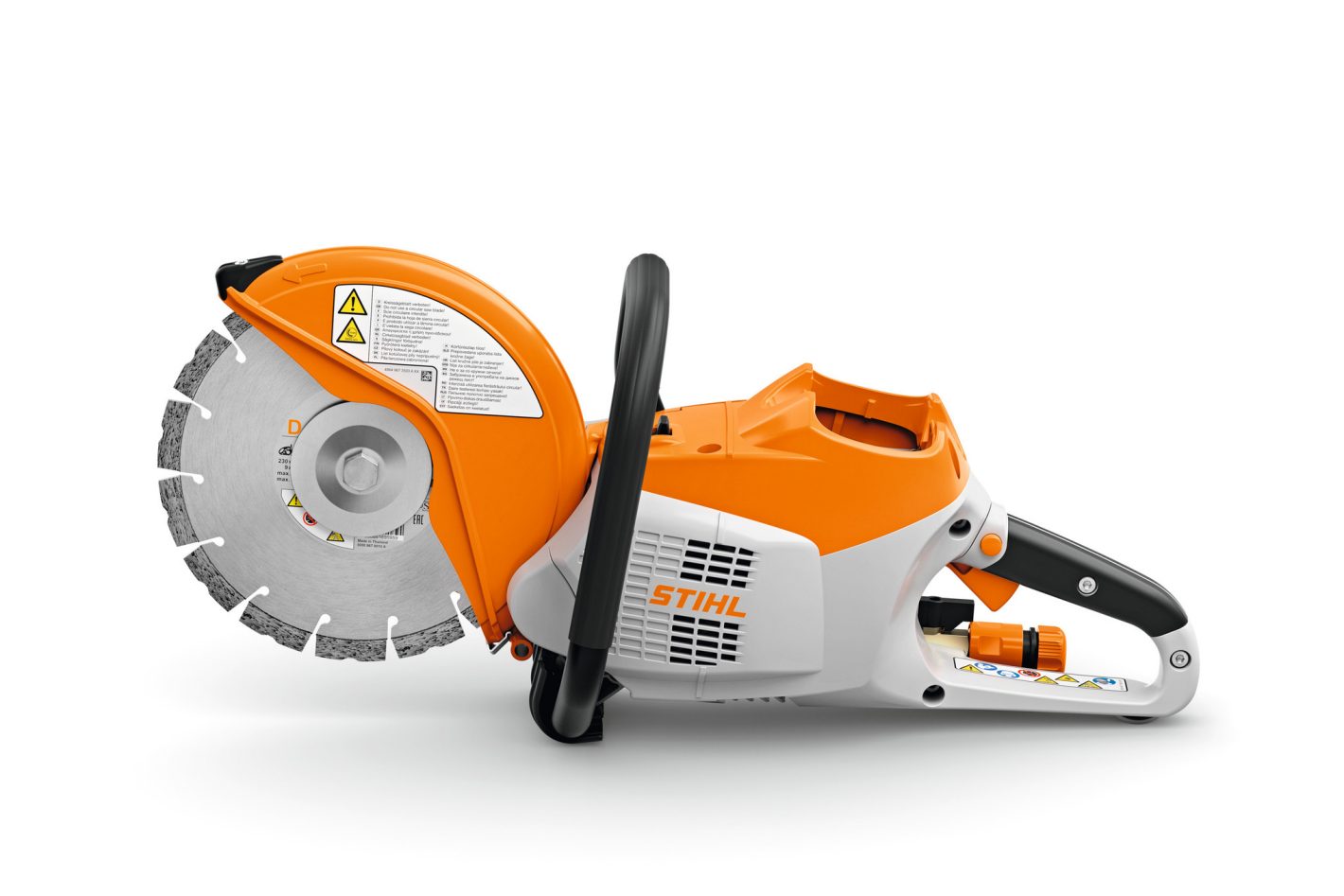

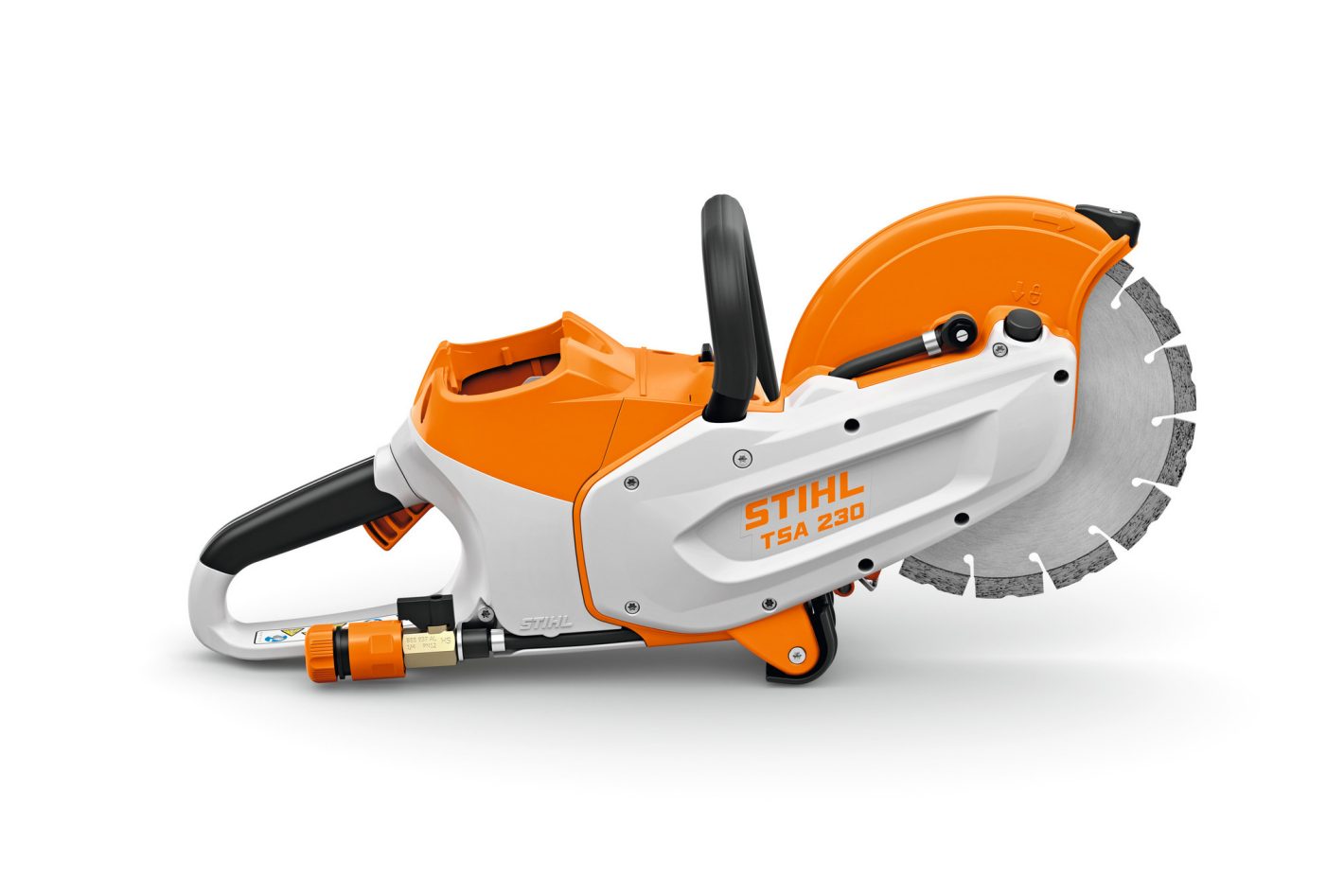

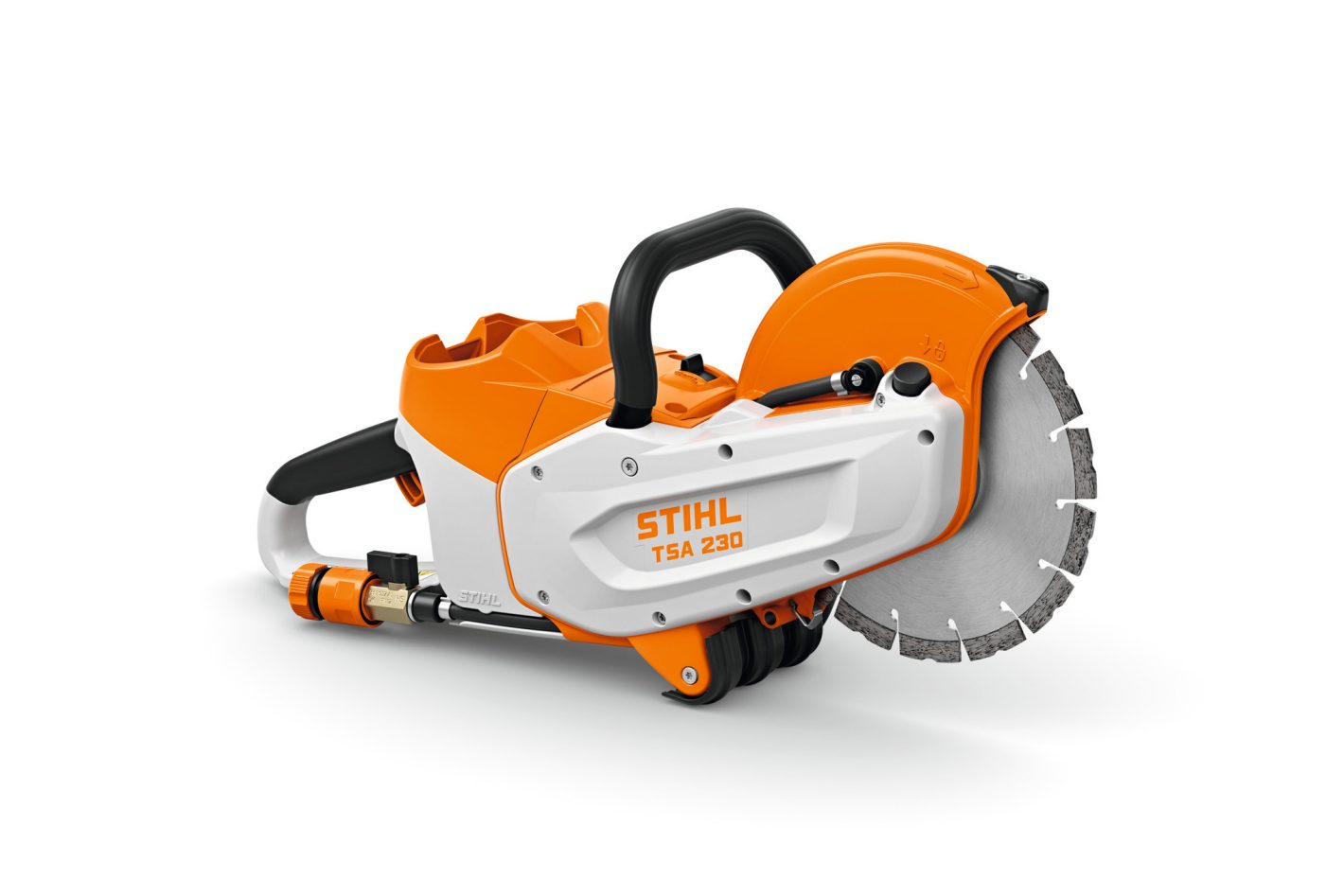

STIHL TSA 230.1 Cordless Cut-Off Machine (Tool Only)

Name: STIHL TSA 230.1 Cordless Cut-Off Machine (Tool Only) - Ibbetts
SKU: TSA 230.1
Price: 458.10 GBP
Availability: InStock

SKU: TSA 230.1

STIHL TSA 230.1 Cordless Cut-Off Machine (Tool Only)

SKU: TSA 230.1

Ex VAT

Inc VAT

Categories:

The STIHL TSA 230.1 Cordless Cut-Off Machine designed for professional construction, hardscaping and utility work. Featuring an upgraded 2.1kW output, low-vibration, EC motor and integrated water connection, it delivers precise cutting performance on paving, concrete, brickwork and steel with the convenience of cordless operation.

The STIHL TSA 230.1 Cordless Cut-Off Machine is a compact, high-performance battery-powered cutter built for professional users working in construction, landscaping, utilities and groundworks. Part of the STIHL ALLPRO/AP System, it offers outstanding cutting performance combined with low noise, low vibration and emission-free operation.

An evolution of the highly successful TSA 230, the TSA 230.1 features an upgraded 2.1kW power output and increased cutting performance, enabling faster cutting speeds and greater versatility across a wider range of applications.

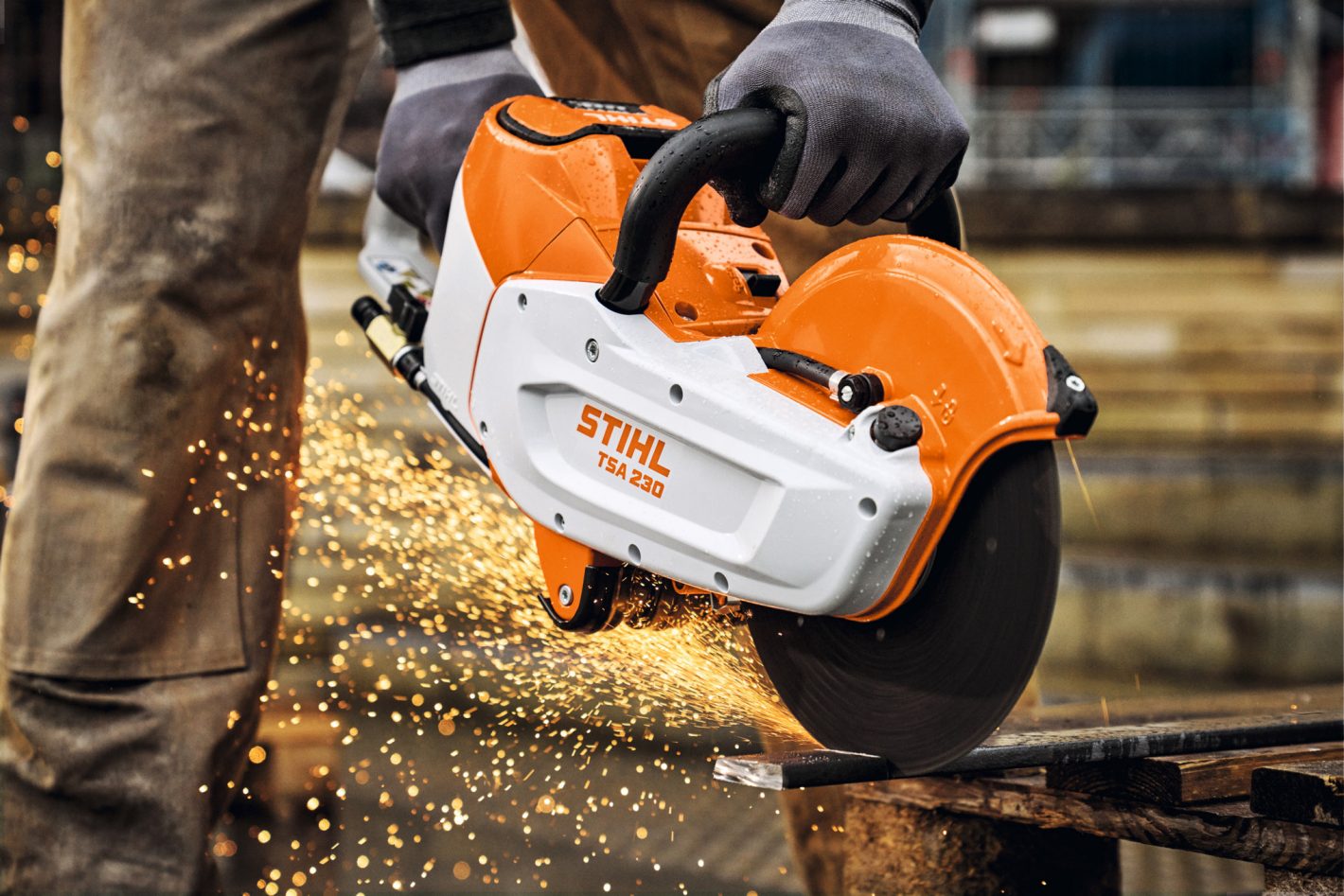

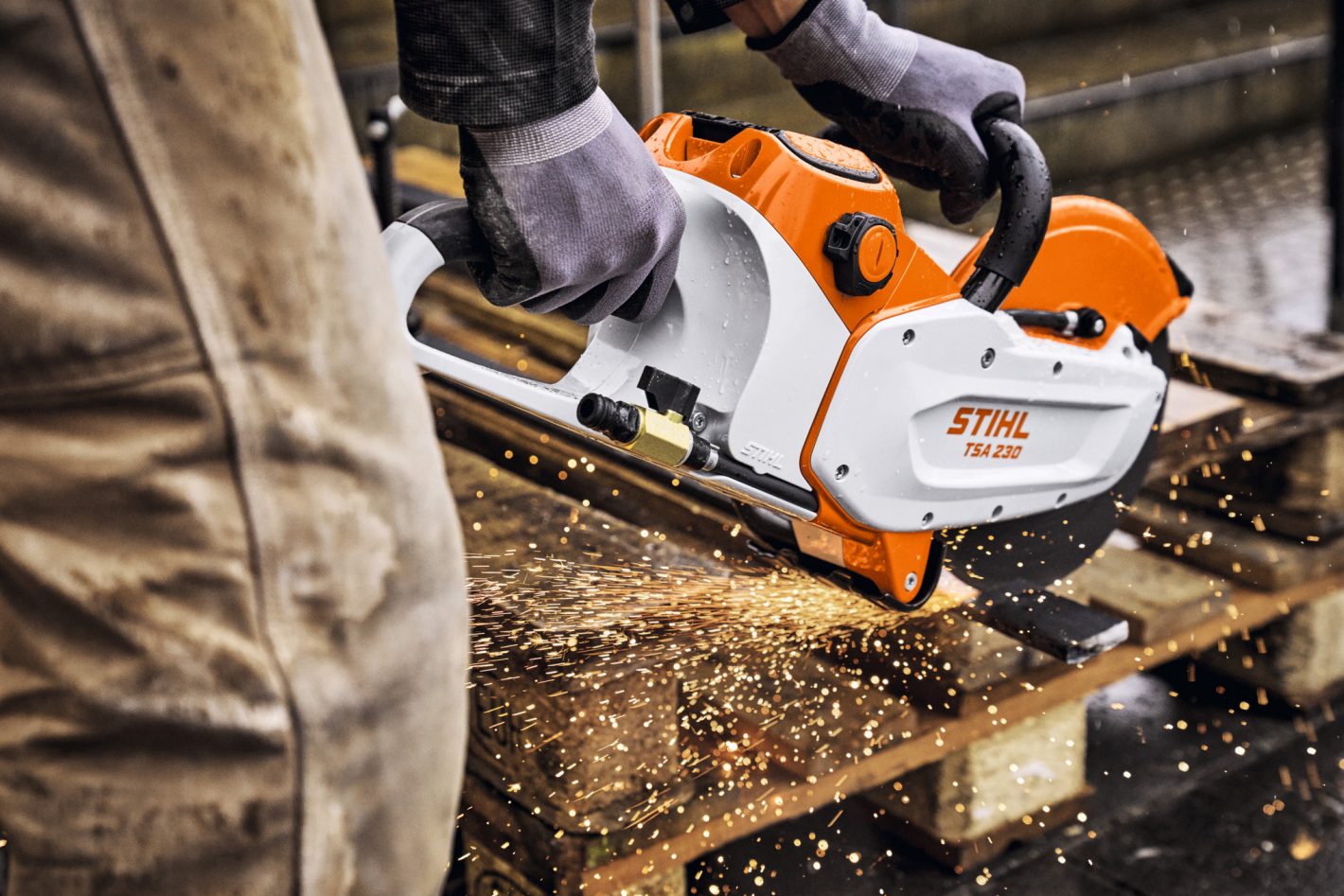

Fitted with a 230mm (9″) cutting wheel, the TSA 230.1 is ideal for making quick, precise cuts in paving slabs, concrete products, brickwork, kerbstones, steel and pipework. The machine is supplied with a high-performance composite resin cutting wheel as standard, while STIHL’s diamond cutting wheels are recommended for prolonged use and demanding cutting applications.

The lightweight and well-balanced design makes the TSA 230.1 exceptionally easy to handle, improving operator comfort and reducing fatigue during repetitive cutting tasks. Its compact size also allows excellent manoeuvrability in tight spaces and confined work areas.

Powered by a highly efficient brushless EC motor, the cutter delivers smooth, low-vibration operation and consistent performance throughout the battery charge. The low-maintenance motor design helps maximise reliability and service life while reducing downtime.

Thanks to its emission-free operation, the TSA 230.1 is suitable for use both outdoors and inside buildings where petrol-powered machines may not be appropriate.

For improved dust suppression, the machine features an integrated water connection and water-guided magnesium guard, helping maintain visibility of the cutting line while reducing airborne dust. The durable magnesium guard is reinforced with stainless steel for increased longevity in demanding environments.

An integrated spindle lock allows cutting wheels to be changed quickly and easily, reducing downtime between tasks.

When paired with the recommended STIHL ALLPRO AP 200 P battery, the TSA 230.1 delivers a working time of approximately 12 to 19 minutes, depending on the application and cutting load.

Please note that the TSA 230 is only available as a tool only, the battery and charger are sold separately.

Table of specifications

Rated voltage

36 V

Max. voltage

40 V

Power

1.60 kW 1)

Battery system

ALLPRO/AP

Recommended battery

AP 200.0 P

Device weight without battery

3.9 kg 2)

Cutting disc diameter

230 mm

Max. cutting depth

70 mm

Device length with cutting disc

55 cm

Sound pressure level

104 dB(A) 4)

Sound power level

115 dB(A) 5)

Vibration level, left

4.3 m/s²

Vibration level, right

2.4 m/s²

Technical Notes

Mechanical power as comparative value to petrol appliance

without cutting disc

The indicated working times per battery charge are indicative and may vary depending on the working material and process. They do not represent runtime under full load.

Measurement according to ISO 19432

Measurement with cutting discs in the cut according to EN 60745-2-22

Working Times

Min. battery working time AP 200 S

9 min 3)

Max. battery working time AP 200 S

14 min 3)

Min. battery working time AP 200.0 P

12 min 4)

Max. battery working time AP 200.0 P

19 min 4)

Min. battery working time AP 300 S

15 min 3)

Max. battery working time AP 300 S

24 min 3)

Min. battery working time AP 300.0 P

18 min 4)

Max. battery working time AP 300.0 P

29 min 4)

Max. battery working time AP 500 S

26 min 3)

FEATURES

Power Boost Technology

STIHL power boost technology enables intelligent communication between the battery and machine, automatically providing the highest possible power output for demanding cutting applications.

Constant Power Technology

The TSA 230.1 maintains high cutting performance as the battery discharges.

Integrated Water Connection

The built-in water connection supplies a constant flow of water to the cutting wheel to suppress dust and cool the blade during operation.

Lightweight Magnesium Guard

The magnesium guard features an integrated water channel and stainless steel reinforcement, providing excellent protection while maintaining a clear view of the cutting area.

Precise and Comfortable Cutting

The ergonomic handle provides a secure grip and excellent control for accurate cutting along marked lines.

Spindle Lock System

The integrated spindle lock makes changing cutting wheels quick and straightforward.

Low-Maintenance EC Motor

The powerful brushless EC motor delivers strong cutting performance with minimal maintenance requirements.
