STIHL MSA 220 C-B Cordless Chainsaw (Tool Only)
SKU: MSA 220
STIHL MSA 220 C-B Cordless Chainsaw (Tool Only)
SKU: MSA 220
£340.50
Ex VAT
£408.60
Inc VAT
Categories:

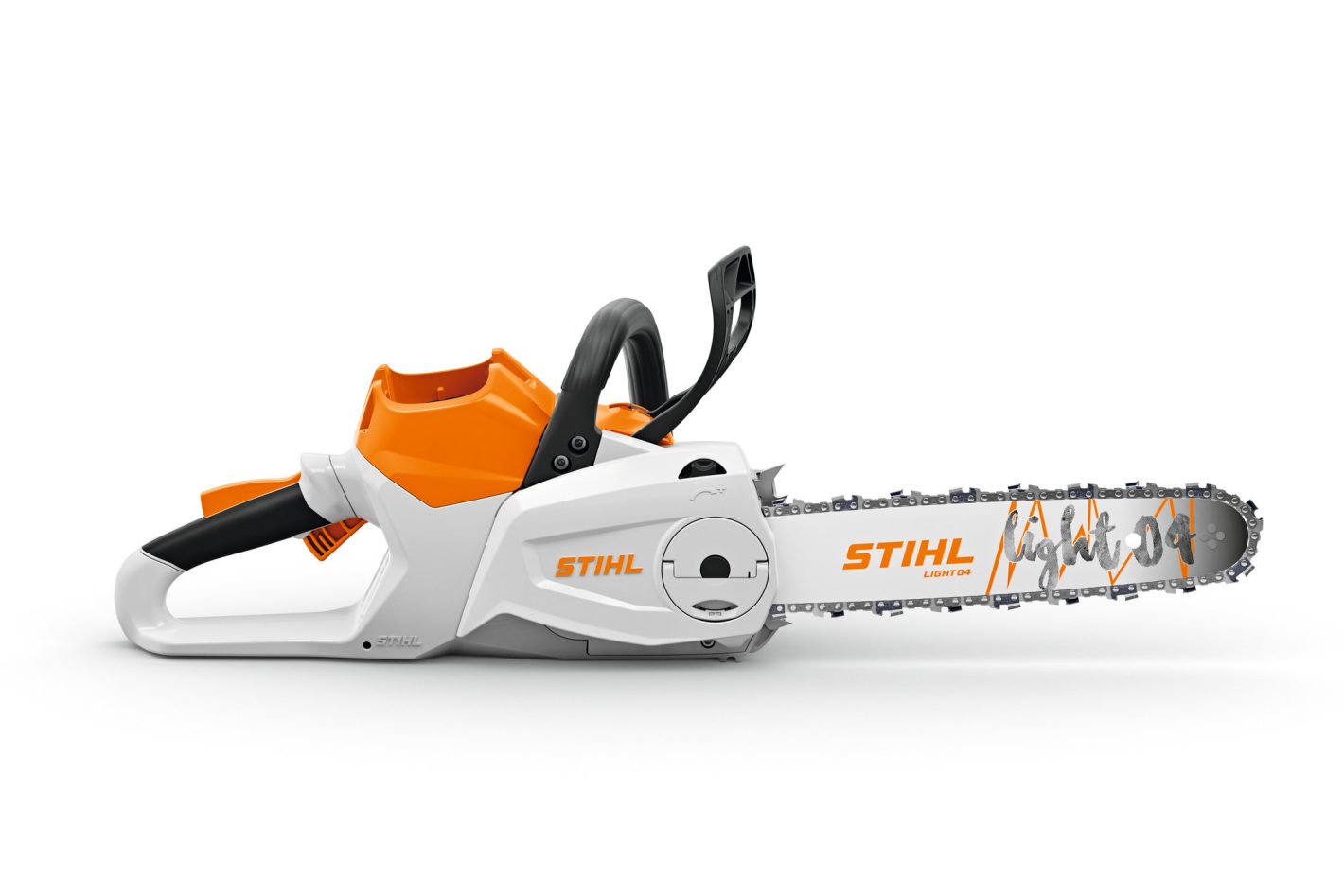

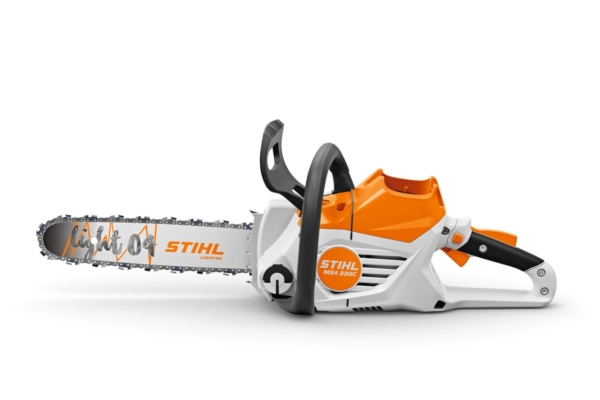

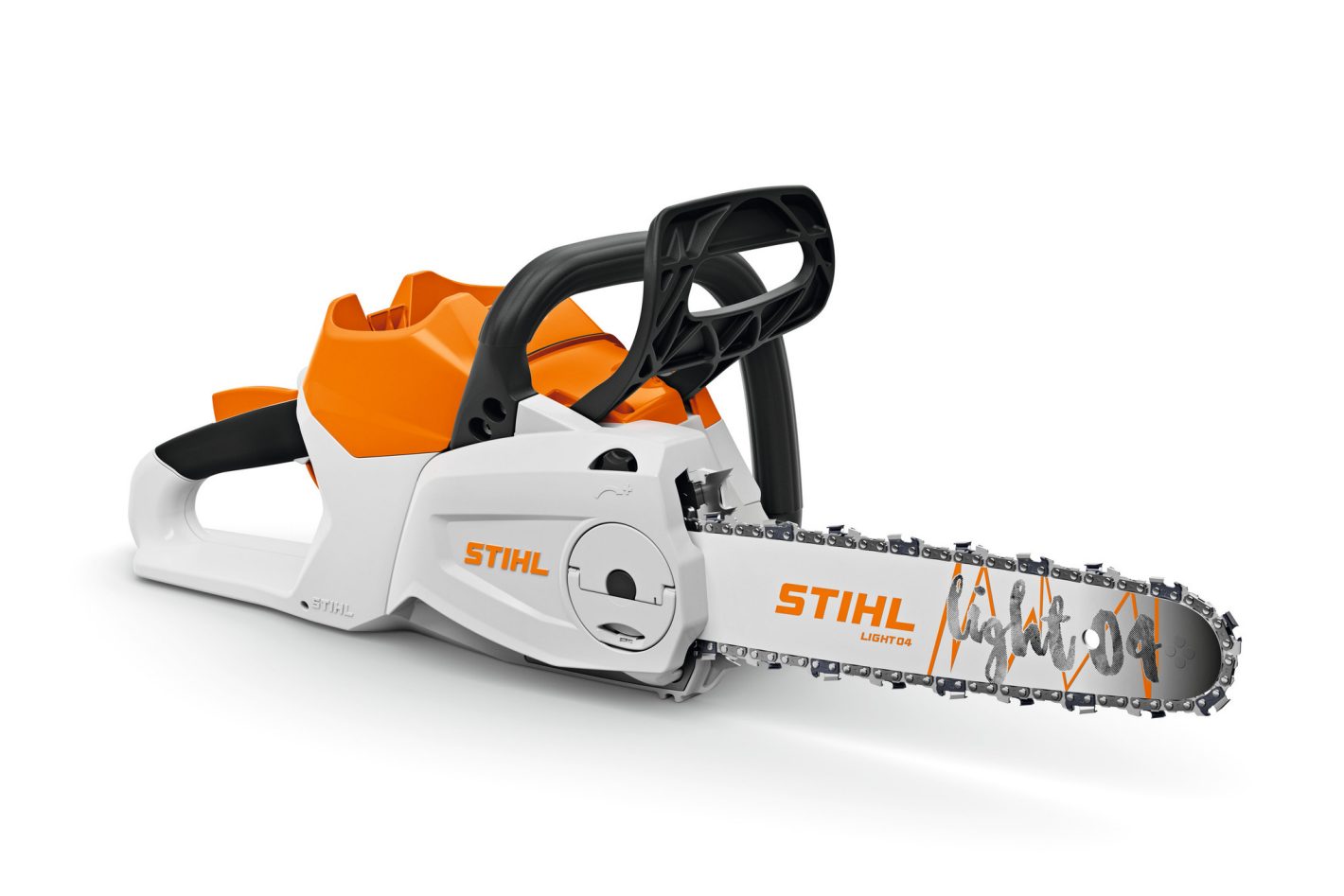

TheSTIHL MSA 220 C-B Cordless Chainsaw is a powerful professional cordless chainsaw with a 14″ Light 04 guide bar and high-performance 3/8″ P PS3 Pro chain. Offering performance comparable to the STIHL MS 201 petrol chainsaw, it is ideal for felling, pruning, cutting firewood and timber processing in noise-sensitive environments.
The STIHL MSA 220 C-B Cordless Chainsaw is a high-performance battery-powered chainsaw designed for professional users who require strong cutting performance combined with the benefits of low-noise cordless operation. Part of the STIHL ALLPRO/AP System, the MSA 220 C-B delivers power comparable to the renowned STIHL MS 201 petrol chainsaw, making it an excellent all-round choice for forestry, landscaping, estate maintenance and arboricultural applications.
Fitted with a 14″ (35cm) Light 04 guide bar and 3/8″ P PS3 Pro saw chain, the MSA 220 C-B delivers exceptional cutting performance with up to 20% greater cutting efficiency compared to the MSA 200 C-B. The advanced chain design also improves energy efficiency, allowing up to 10% more cuts per battery charge.
Suitable for a wide range of tasks, the MSA 220 C-B excels at felling small trees up to 25cm in diameter, pruning branches, cutting firewood and processing timber for construction work. Its impressive power output and robust construction make it a versatile professional chainsaw for daily use.
The chainsaw features an ergonomic rear control handle and variable-speed trigger system, giving operators precise control over chain speed for different cutting applications. This improves accuracy when working around shrubs, processing timber or carrying out detailed pruning tasks.
For easy maintenance, the MSA 220 C-B includes STIHL Quick Chain Tensioning, allowing the chain to be adjusted without additional tools. A transparent oil tank provides clear visibility of chain oil levels, while sturdy metal bumper spikes ensure precise guidance and greater control during cuts.
Powered by a high-efficiency brushless motor, the MSA 220 C-B delivers consistent performance while maintaining low vibration and reduced maintenance requirements. Its quiet operation makes it ideal for noise-sensitive environments such as schools, residential areas, hospitals and parks.
When used with the recommended STIHL AP 300 P/PC battery, the MSA 220 C-B provides up to 39 minutes of runtime, making it a dependable solution for demanding professional cutting applications.
Please note the MSA 220 C-B is only available as a tool only, the battery and charger are sold separately.
Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.
Table of specifications
Rated voltage
36 V
Max. voltage
40 V
Battery system
ALLPRO/AP
Power
1.70 kW 1)
Recommended battery
AP 300.0 P
Device weight without battery
3.1 kg 2)
Device weight without battery
3.68 kg 3)
Bar length
35 cm / 14 " 4)
Saw chain pitch
3/8"P
IPX Rating
IPX4
Device length with bumper spike
437 mm 2)
Sound pressure level
91 dB(A) 6)
Sound power level
99 dB(A) 6)
Vibration level, left
4.8 m/s² 7)
Vibration level, right
3.6 m/s² 7)
Technical Notes
1)
Mechanical power as comparative value to petrol appliance
2)
without guide bar and saw chain
3)
with guide bar and saw chain
4)
The actual cutting length is shorter than the specified bar length
5)
The indicated working times per battery charge are indicative and may vary depending on the application and operating mode
6)
K-value according to Directive 2006/42/EC = 2.0 dB(A)
7)
K-value according to RL 2006/42/EG = 2 m/s²
Working Times
Max. battery working time AP 100.0 P
21 min 5)
Max. battery working time AP 200
32 min 5)
Max. battery working time AP 200 S
32 min 5)
Max. cuts per battery charge AP 200 S
150 pcs 6)
Max. battery working time AP 200.0 P
27 min 5)
Max. battery working time AP 30
34 min 5)
Max. battery working time AP 30.1
34 min 5)
Max. battery working time AP 300
35 min 5)
Max. battery working time AP 300 S
37 min 5)
Max. cuts per battery charge AP 300 S
300 pcs 6)
Max. battery working time AP 300.0 P
39 min 5)
Max. battery working time AP 500 S
44 min 5)
Max. cuts per battery charge AP 500 S
350 pcs 6)
FEATURES
Constant Power Technology
STIHL Constant Power technology ensures the MSA 220 maintains strong and consistent cutting performance, regardless of the battery's charge level.
Quick Chain Tensioning
STIHL Quick Chain Tensioning allows the saw chain to be adjusted quickly and easily without additional tools.
Transparent Oil Tank
The transparent chain oil tank allows you to quickly check oil levels at a glance, helping maintain optimum chain lubrication during operation.
Soft Grip Control Handle
The ergonomic soft grip handle features a variable-speed control system, allowing you to adjust chain speed to suit the task and material being cut.
Sturdy Metal Bumper Spikes
The robust metal bumper spikes provide a secure pivot point against the timber, improving control and cutting accuracy.
Ergonomic Two-Handed Operation
The MSA 220 C-B is designed with an ergonomic front handle and soft-grip rear handle to ensure safe and comfortable two-handed operation.
High-Efficiency EC Motor
The brushless EC motor delivers strong cutting performance while remaining energy efficient and highly reliable.
IPX4 Splash Water Protection
The MSA 220 is IPX4 certified, providing protection against splashing water from all directions.
