STIHL HSA 140 R Cordless Hedge Trimmer (Tool Only)

Name: STIHL HSA 140 R Cordless Hedge Trimmer (Tool Only) - Ibbetts
SKU: HSA 140 R
Availability: InStock

SKU: HSA 140 R

STIHL HSA 140 R Cordless Hedge Trimmer (Tool Only)

SKU: HSA 140 R

Categories:

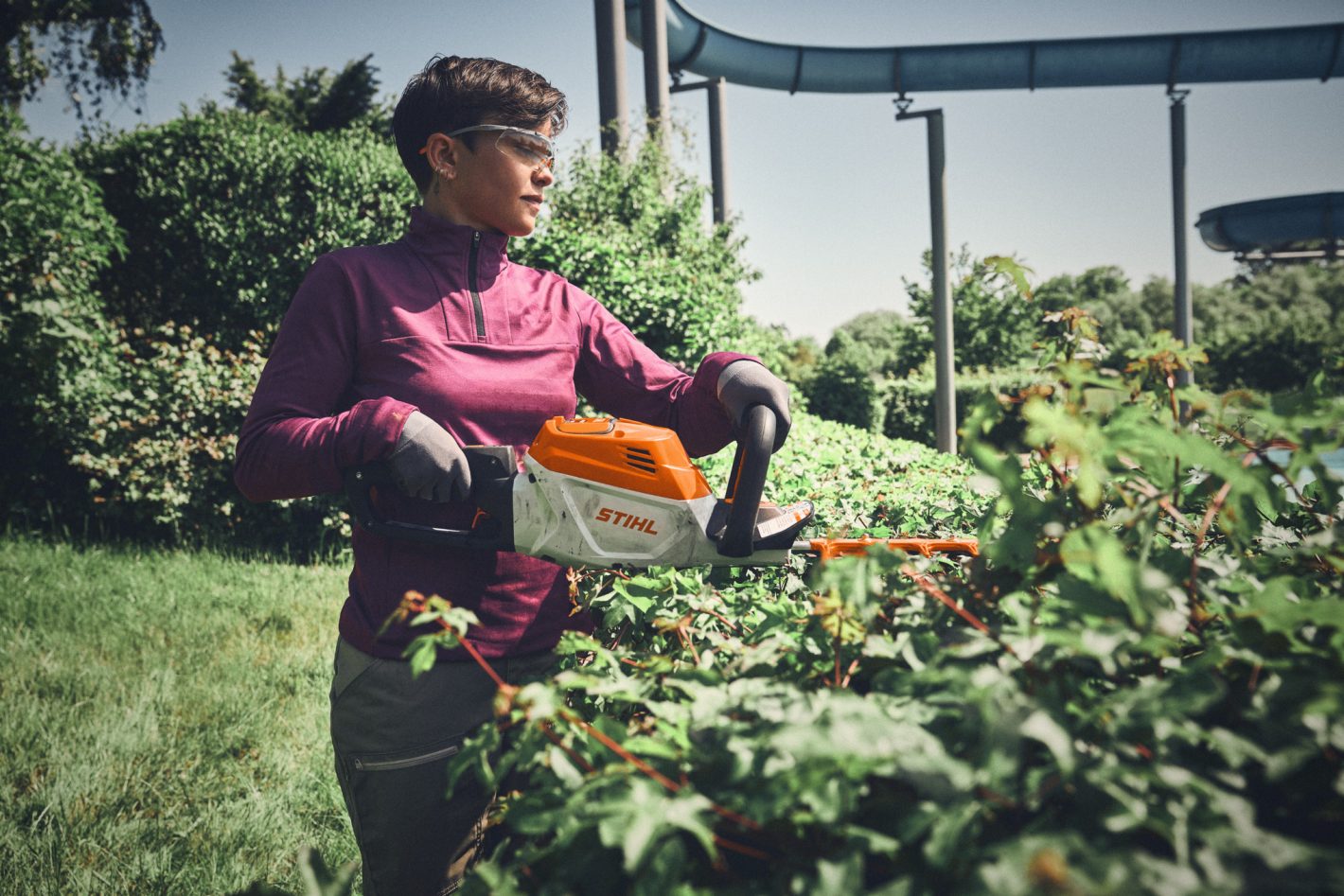

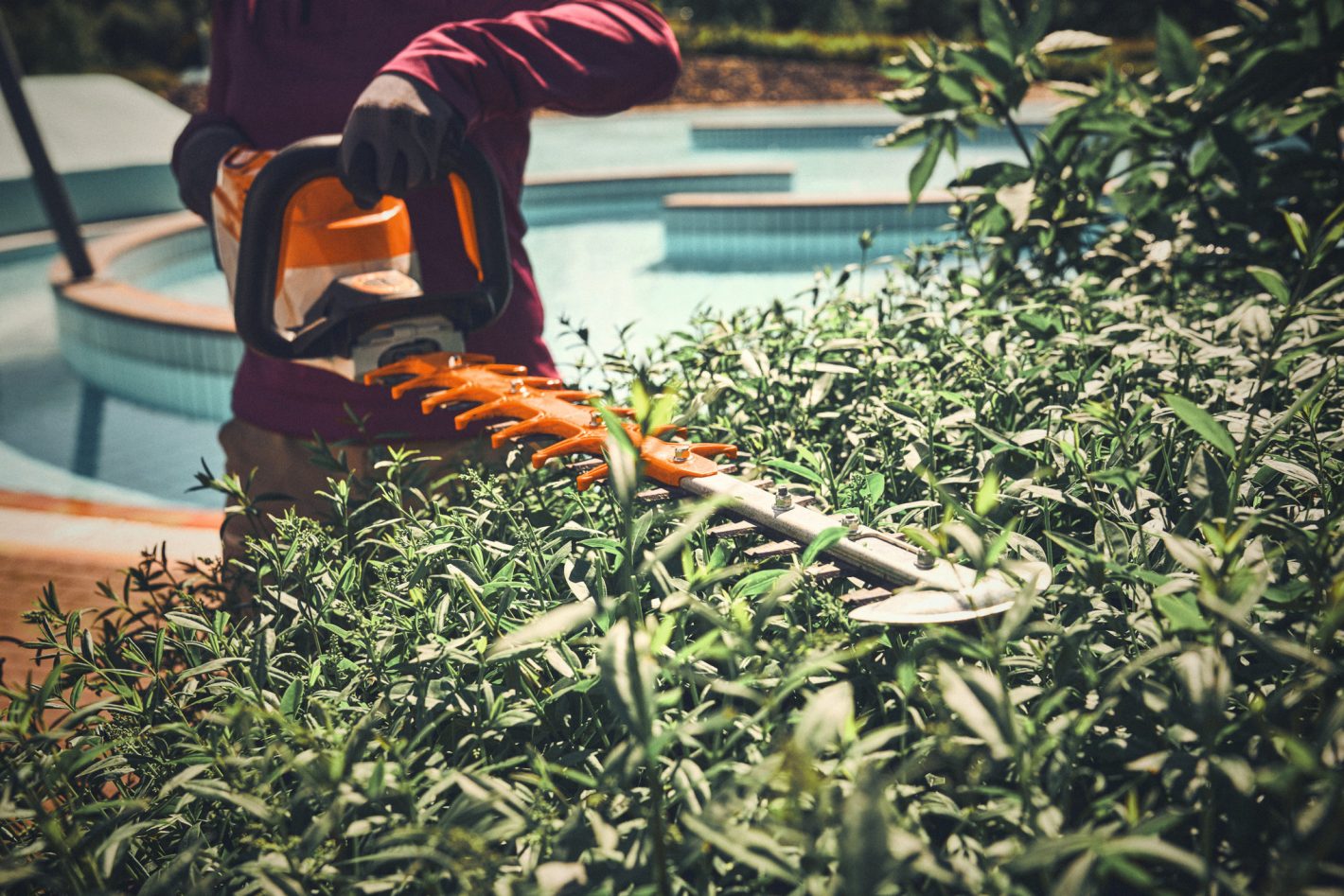

The STIHL HSA 140 R Cordless Hedge Trimmer is a powerful professional pruning hedge trimmer designed for cutting back mature hedges, annual reduction work and tackling thicker growth. Part of the STIHL ALLPRO/AP System, it combines outstanding cutting force, low noise operation and excellent ergonomics for demanding landscaping and grounds maintenance applications.

The STIHL HSA 140 R Cordless Hedge Trimmer is a robust, high-performance professional hedge trimmer built for demanding pruning and hedge reduction work. Part of the STIHL ALLPRO/AP System, it delivers performance comparable to the STIHL HS 82 petrol hedge trimmer while offering the advantages of battery power, including low noise levels, reduced vibration and zero direct emissions.

Designed specifically for landscapers, grounds maintenance contractors and professional gardeners, the HSA 140 R excels at annual hedge maintenance, rejuvenation work and cutting back mature hedges. Its specialised pruning blade design makes it ideal for tackling thicker stems, woody growth and dense hedge material that requires greater cutting force than a trimming hedge trimmer can provide.

The double-sided cutting blade features a wide 38mm tooth spacing and operates at lower blade speeds to maximise cutting power. Three selectable speed settings 2,800, 3,000 or 3,200 rpm, allow users to tailor performance to different hedge species, growth density and working conditions while maintaining consistent cutting performance.

Excellent ergonomics are central to the HSA 140 R design. The rotating rear handle allows comfortable operation when trimming hedge tops, sides and angled surfaces, while the balanced battery positioning helps reduce operator fatigue during extended use. When paired with the recommended AP 100 P battery, the trimmer offers an excellent balance of runtime, weight and handling.

A powerful EC motor works alongside a newly developed gearbox system to deliver exceptional cutting force and rapid acceleration. The integrated anti-jamming function helps keep work moving by automatically assisting with blade release if thicker branches become trapped.

Built for daily professional use, the HSA 140 R features STIHL anti-vibration technology, IPX4-rated splash protection and compatibility with the STIHL Connected platform for fleet management and maintenance monitoring.

Recommended for use with the ALLPRO AP 100 P battery. Working time with the recommended battery is around 97 – 69 minutes.

Available with either a 24″ (60cm) or 30″ (75cm) double-sided cutting blade. Please select your preferred blade length from the dropdown menu.

Table of specifications

Rated voltage

36 V

Max. voltage

40 V

Power

0.46 kW

Battery system

ALLPRO/AP

Recommended battery

AP 100.0 P

Stroke rate

2600 rpm

Stroke rate Level 2

3000 rpm

Stroke rate Level 3

3400 rpm

Weight

4.4-4.7 kg

Cutter blade length

60-75 cm

Tooth spacing

38 mm

IPX Rating

IPX4

Device length with blade

125 / 137 cm

Sound pressure level

77.0 / 79.0 dB(A) 4)

Sound power level

85.0 / 87.0 dB(A) 4)

Vibration level, left

2.7 / 3.0 m/s² 5)

Vibration level, right

2.3 / 2.5 m/s² 5)

Technical Notes

Mechanical power as comparative value to petrol appliance Mechanical power as comparative value to petrol appliance

with knife

The indicated working times per battery charge are indicative and may vary depending on the application and operating mode The indicated working times per battery charge are indicative and may vary depending on the application and operating mode

K-value according to Directive 2006/42/EC = 2.0 dB(A) K-value according to Directive 2006/42/EC = 2.0 dB(A)

depending on the blade used depending on the blade used

Working Times

Min. battery working time AP 100

60 min 3)

Max. battery working time AP 100

80 min 3)

Min. battery working time AP 100.0 P

69 min 3)

Max. battery working time AP 100.0 P

97 min 3)

Min. battery working time AP 20

77 min 4)

Max. battery working time AP 20

116 min 4)

Min. battery working time AP 20.1

77 min 3)

Max. battery working time AP 20.1

116 min 3)

Min. battery working time AP 200

100 min 3)

Max. battery working time AP 200

150 min 3)

Min. battery working time AP 200 S

100 min 3)

Max. battery working time AP 200 S

150 min 3)

Min. battery working time AP 200.0 P

140 min 3)

Max. battery working time AP 200.0 P

195 min 3)

Min. battery working time AP 30

168 min 4)

Max. battery working time AP 30

235 min 4)

Min. battery working time AP 30.1

168 min 3)

Max. battery working time AP 30.1

235 min 3)

Min. battery working time AP 300

140 min 3)

Max. battery working time AP 300

195 min 3)

Min. battery working time AP 300 S

175 min 3)

Max. battery working time AP 300 S

245 min 3)

Min. battery working time AP 300.0 P

205 min 3)

Max. battery working time AP 300.0 P

290 min 3)

Min. battery working time AP 500 S

210 min 3)

Max. battery working time AP 500 S

290 min 3)

Min. battery working time AR 2000 L

670 min 3)

Max. battery working time AR 2000 L

935 min 3)

Min. battery working time AR 3000 L

1005 min 3)

Max. battery working time AR 3000 L

1405 min 3)

features

Constant Power Technology

STIHL Constant Power technology maintains reliable cutting performance throughout the battery charge cycle, ensuring consistent results from start to finish.

Cutting Version (R)

The "R" version is optimised for heavier pruning work and larger-volume hedge reduction.

Double-Sided Cutting Blade

The double-sided blade design allows efficient cutting in multiple directions, making it easier to prune hedge tops, sides and corners whilst maintaining excellent control.

38mm Tooth Spacing

The wide tooth spacing enables efficient cutting of thicker twigs, branches and mature hedge growth that would challenge lighter trimming models.

Three Adjustable Blade Speeds

2,800 rpm, 3,000 rpm, 3,200 rpm

Rotating Multi-Function Handle

The rear handle rotates through multiple positions to improve comfort and control when cutting at different angles. Suitable for both left-handed and right-handed users.

Anti-Jamming Function

Should thicker branches become trapped in the blades, the anti-jamming system helps release the blockage by reversing blade direction when the trigger is reactivated.

High-Performance Gearbox System

The advanced gearbox design works with the EC motor to deliver excellent cutting force, fast blade acceleration and dependable performance under load

STIHL Anti-Vibration System

The anti-vibration system reduces vibration transfer to the handles, increasing comfort and helping reduce operator fatigue.

Tip Protector

A durable tip protector helps prevent accidental blade damage when working near walls, fencing, paving and other hard surfaces.

Replaceable Cut Protection

The screw-on cut protection enhances user safety and can be replaced easily if worn or damaged.

Blade Scabbard Included

A protective blade scabbard is supplied for safer transport and secure storage.

Hanging Eyelet

An integrated hanging eyelet allows compact and convenient storage when the hedge trimmer is not in use.

Efficient EC Motor

High cutting performance. Excellent energy efficiency. Low maintenance requirements. Long service life.

IPX4 Splash Protection

Certified to IPX4 standards, allowing operation in wet weather and challenging outdoor environments.

STIHL Connected Ready

Compatible with the optional STIHL Smart Connector, enabling machine usage, maintenance schedules and operating hours to be monitored through STIHL Connected.

Available Blade Lengths

24" (60cm) / 30" (75cm)
