STIHL GS 461 Petrol Concrete Cutter
SKU: GS 461
STIHL GS 461 Petrol Concrete Cutter
SKU: GS 461
£1,905.54
Ex VAT
£2,286.65
Inc VAT
Categories:

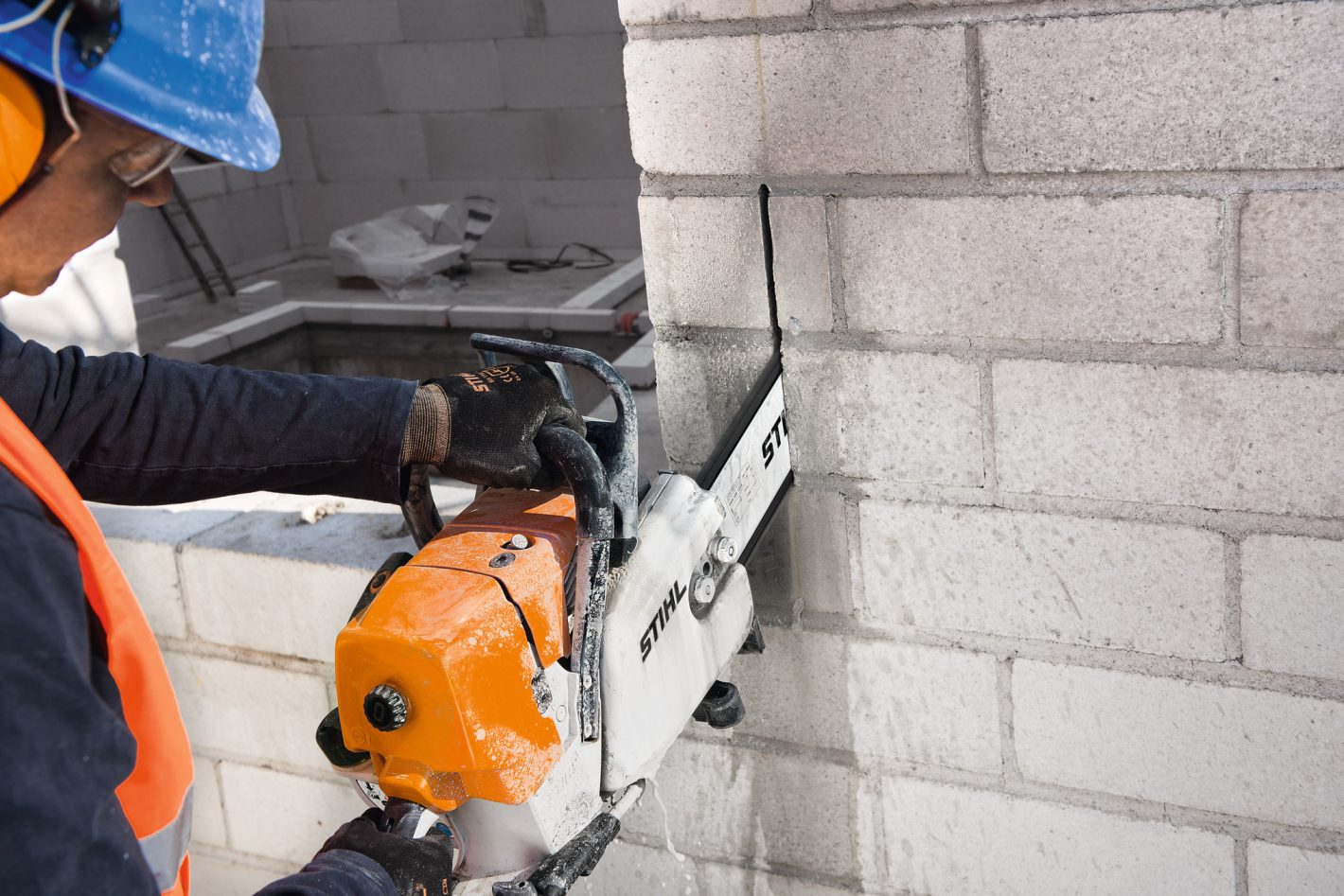

The STIHL GS 461 Petrol Concrete Cutter combines the handling of a chainsaw with the cutting performance of a specialist cut-off machine. Designed for professional construction, utility and groundwork applications, it is ideal for wet cutting concrete, masonry, stone and ductile cast iron pipes with exceptional precision and impressive cutting depth.
The STIHL GS 461 Petrol Concrete Cutter is a powerful and highly specialised cutting tool designed for demanding construction, civil engineering and utility installation work. Combining the familiar handling characteristics of a chainsaw with the cutting capability of a professional cut-off machine, it provides an effective solution for cutting concrete, masonry, natural stone, concrete pipes and ductile cast iron pipes.
One of the key advantages of the GS 461 is its ability to achieve deep, precise cuts whilst maintaining excellent manoeuvrability. This makes it particularly well suited to creating square corners, undertaking pipework installations and carrying out structural alteration work where accuracy is essential.
The machine is equipped with a diamond abrasive chain and a specially designed guide bar, delivering exceptional cutting performance in mineral-based materials. An integrated water management system helps suppress dust whilst simultaneously cooling the cutting attachment, improving cutting efficiency and extending component life.
Built for professional contractors and construction professionals, the GS 461 features a robust design, excellent power-to-weight ratio and advanced filtration system to help ensure reliable performance in challenging site conditions. Whether undertaking utility work, road construction or specialist building projects, the STIHL GS 461 delivers the cutting power and precision required for demanding applications.
Table of specifications
Displacement
76.5 cm³
Power
4.3 kW
Engine power
5.8 HP
CO2
702 g/kWh
Device weight without refuelling
7.5 kg 1)
Bar length
40cm / 16" 2)
Saw chain pitch
3/8 "
Device length with bumper spike
453 mm 1)
Sound pressure level
105 dB(A) 3)
Sound power level
115 dB(A) 3)
Vibration level, left
4.5 m/s² 4)
Vibration level, right
4 m/s² 4)
Technical Notes
1)
without guide bar and cutting chain
2)
The actual cutting length is shorter than the specified bar length
3)
K-value according to Directive 2006/42/EC = 2.0 dB(A)
4)
K-value according to RL 2006/42/EG = 2 m/s²
FEATURES
Diamond Cutting Chain
The specialised diamond saw chain converts engine power into highly effective cutting performance, enabling the GS 461 to tackle concrete, masonry, stone and pipework with precision and efficiency.
Exceptional Cutting Depth
The unique cutting system allows for deeper cuts than many conventional cut-off machines, making it ideal for construction, utility and infrastructure projects where increased cutting capacity is required.
Side-Mounted Chain Tensioning
The chain can be tensioned quickly and safely via the side-mounted adjustment system. This design provides convenient access and simplifies routine maintenance and chain replacement.
Long-Life Air Filtration System
The advanced air filtration system combines pre-separation technology with an HD2 filter to reduce dust ingress and protect the engine. This helps extend service intervals, improve reliability and support long engine life in demanding working environments.
Tool-Free Filler Caps
Practical bayonet-style fuel and water tank caps allow quick opening and closing without the need for additional tools, helping reduce downtime on site.
Manual Decompression Valve
The decompression valve assists with engine starting by reducing cylinder pressure during start-up, making the machine easier to pull over and reducing strain on the starting system.
Integrated Water Supply System
A controllable water connection continuously supplies water to the cutting attachment, helping suppress dust and improve visibility while cooling the chain during operation.
Rollomatic G Guide Bar
The specially engineered Rollomatic G guide bar features integrated water channels that deliver water directly to the chain and cutting area. This helps reduce dust, improve cooling and extend the service life of both the guide bar and chain.
Precision Corner Cutting
Unlike traditional cut-off machines, the GS 461 is capable of producing accurate square corner cuts, making it particularly useful for structural openings, construction work and utility installations.
Integrated Water Management System
The sprocket cover incorporates an advanced water management system that helps direct water back into the cutting channel. This improves dust suppression, enhances cooling of the cutting attachment and reduces water loss, helping to maximise efficiency during wet cutting applications.
Protective Rubber Guard
A durable rubber guard helps protect the engine housing during deep wall cutting and full-depth applications. This added protection reduces wear on the machine and supports long-term durability in demanding construction environments.
STIHL 2-MIX Engine
The STIHL 2-MIX engine delivers impressive cutting performance while helping to reduce fuel consumption and exhaust emissions. Designed for professional use, it provides strong power output, low maintenance requirements and compliance with current emissions standards, helping to reduce operating costs without compromising performance.
STIHL Anti-Vibration System
The integrated anti-vibration system uses a combination of buffer and spring elements to minimise vibration transfer to the handles. This improves operator comfort, reduces fatigue during prolonged use and helps maintain better control when carrying out precision cutting tasks.
