Description

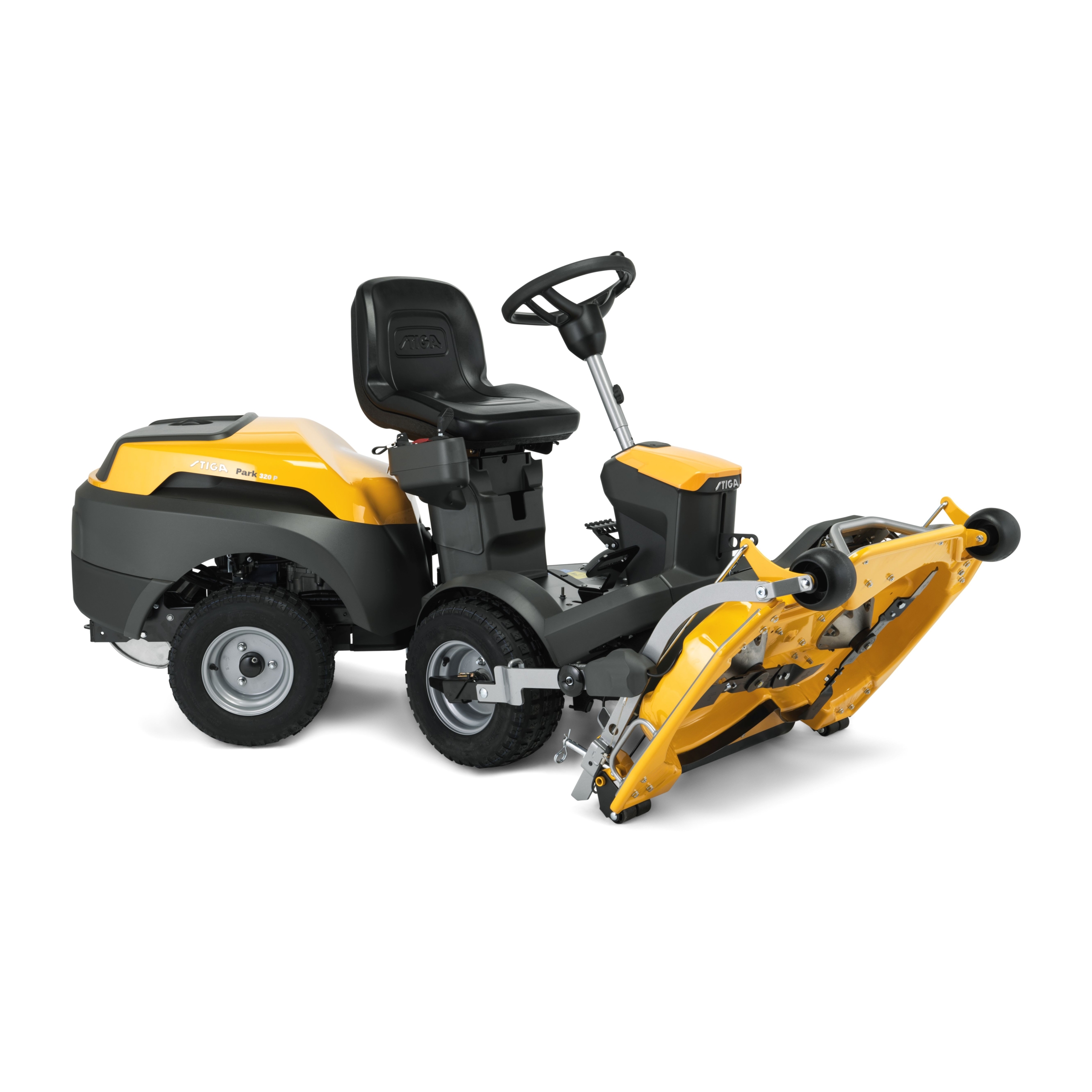

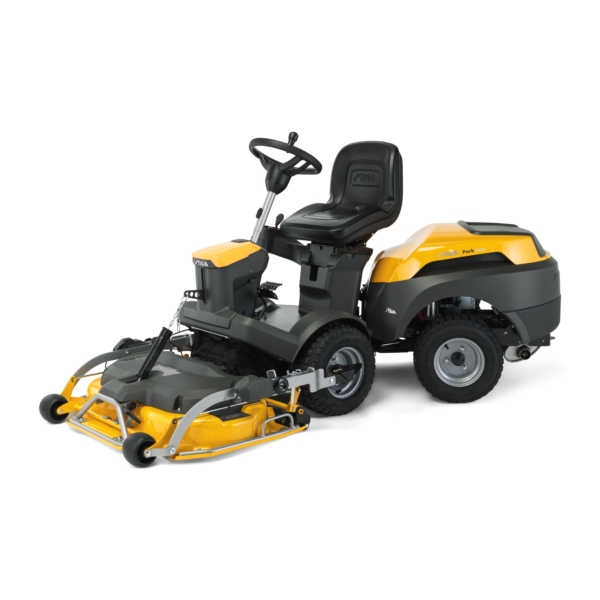

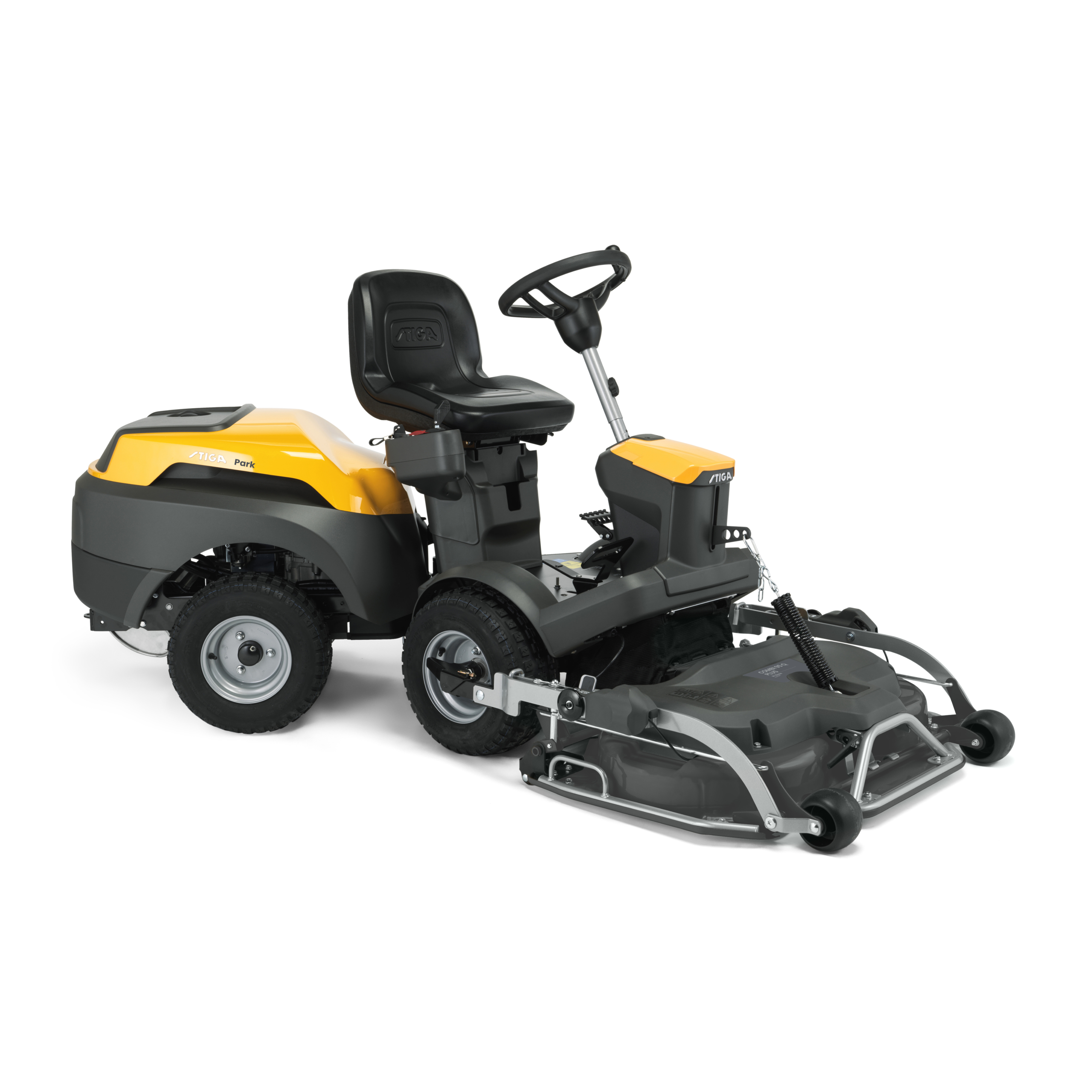

STIGA Park 500 Petrol Front Mower – DECK NOT INCLUDED
The Park 500 out-front mower combines reliability and manoeuvrability in one machine. It’s driven by a reliable STIGA 432cc one-cylinder engine, while its special articulation (50:50) jointly with the power-assisted steering will help you move around the garden and its obstacles in the easiest way. This mower’s front-mounted deck also provides a clear view of your working area, easier access to corners, and beautiful results along edges.
Decks Available for STIGA Park 500 Petrol Front Mower
STIGA Combi 100 Q Plus Deck
STIGA Combi 95 Q Plus Deck
| POWER |
| Power source – Petrol |
| Power – 8.1 Kw |
| Battery capacity – 30 Ah |

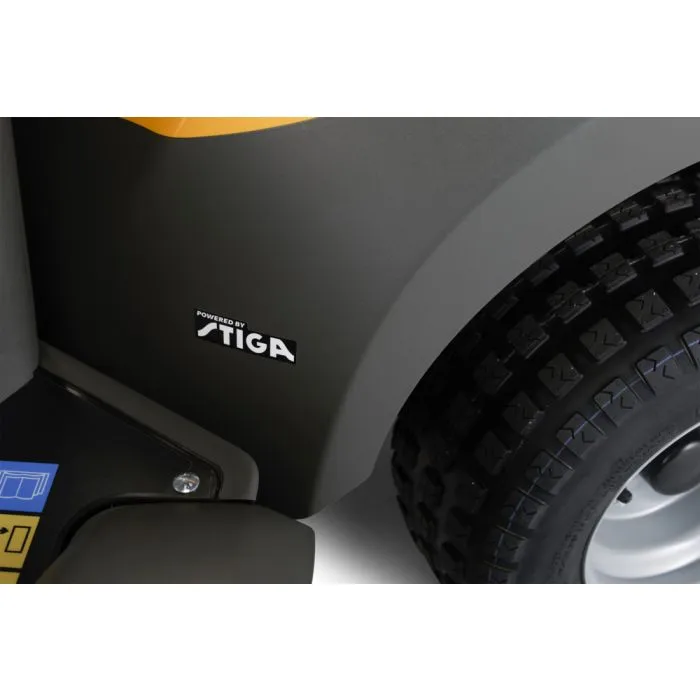

| Engine Brand – STIGA |
| Engine model – ST 450 Powered by STIGA |
| Displacement – 432 cm³ |
| Engine rotation speed – 3200 rpm |
| Battery Voltage – 12 V |
| Choke – Manual |
| Engine cooling – Air |
| Fuel tank capacity – 12 l |

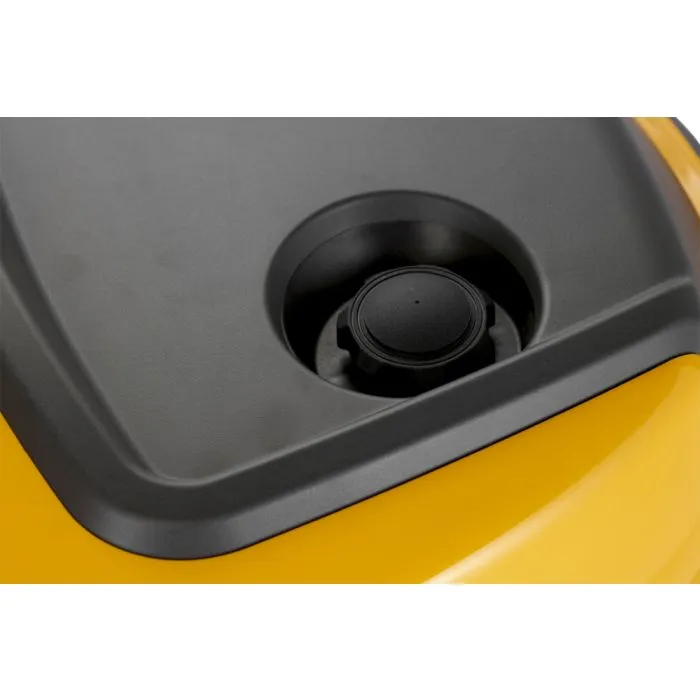

| Easy refill – Yes |
| Engine Oil tank capacity – 1.2 l |
| Maximum working area – 4500 ㎡ |
| CUTTING SYSTEM |
| Cutting method – Combi – switch between Multiclip mulching and rear discharge |
| Cutting width – 95 – 100 cm |
| Deck lift – Electric |
| Cutting height adjustment – Manual |
| Service position – Yes |
| DRIVE SYSTEM |
| Traction – Rear-wheel drive |
| Maximum speed forward – 10 km/h |
| Transmission type – Hydrostatic |

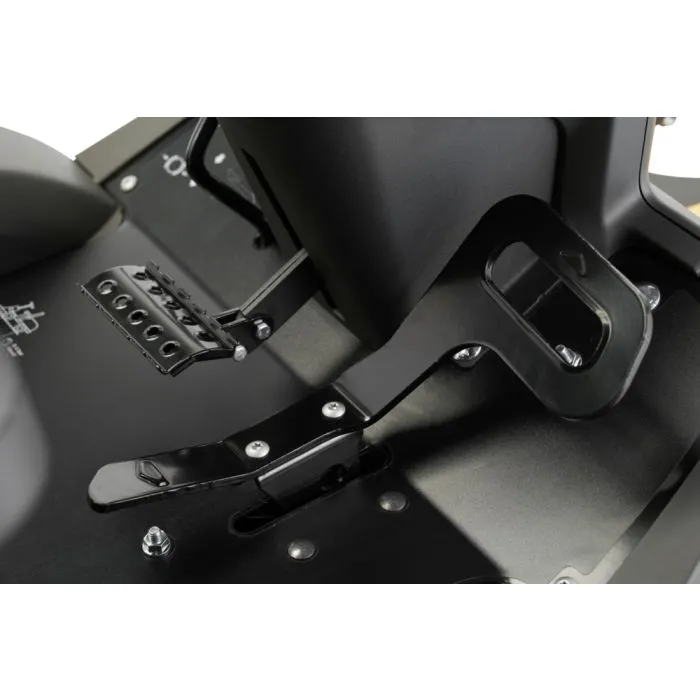

| Transmission method – Pedal-operated |
| EQUIPMENT |

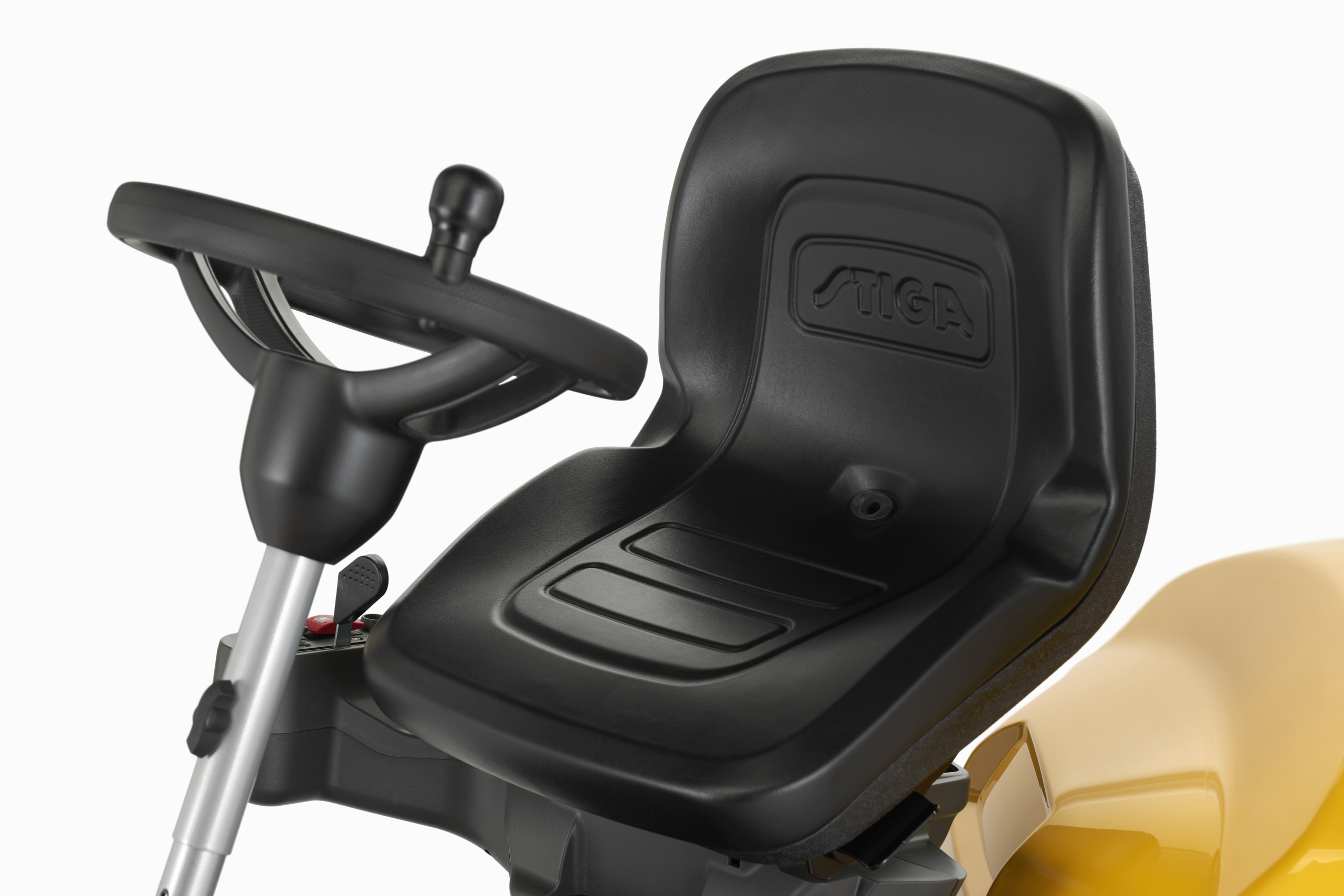

| Steering wheel – Adjustable With spinner |

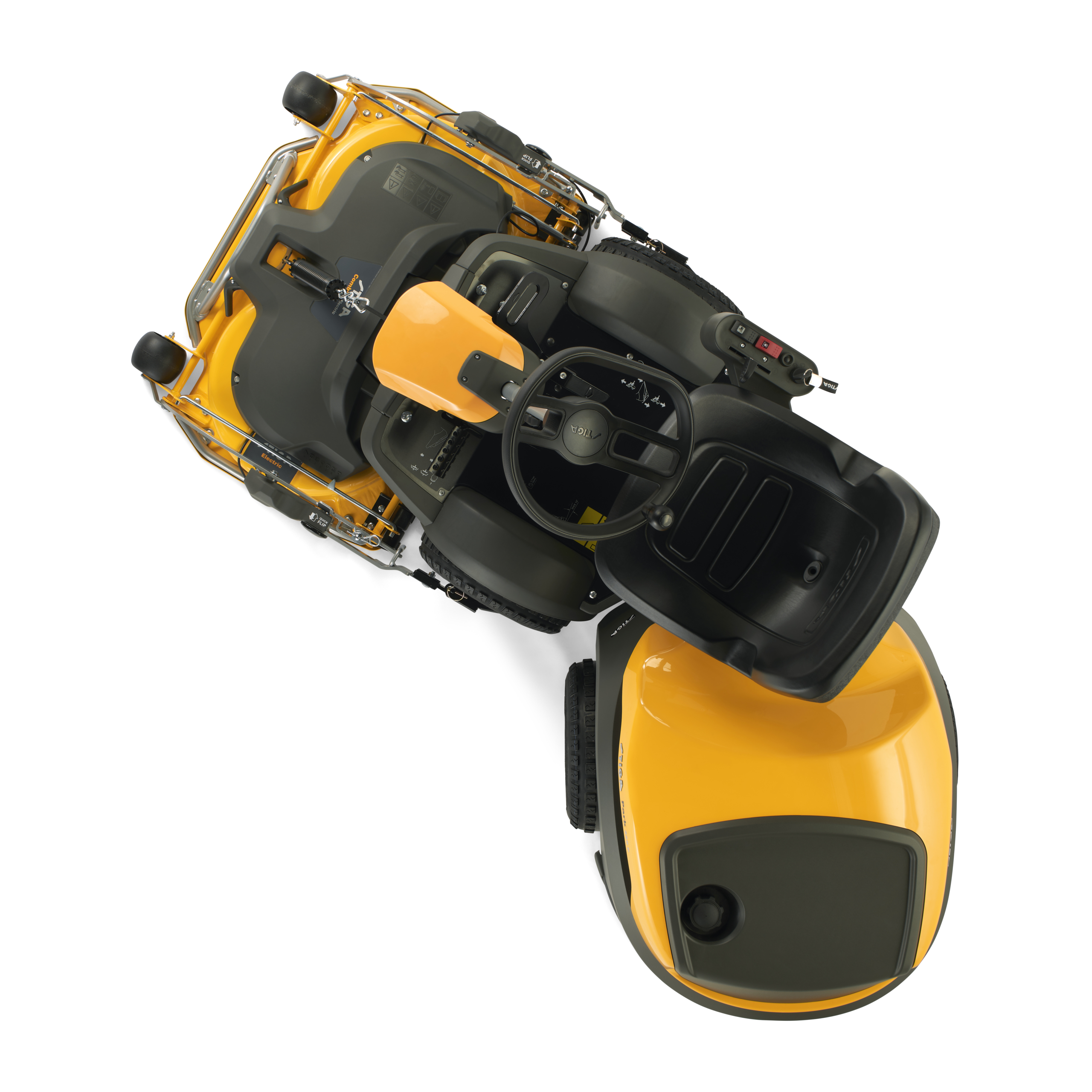

| Steering type – Articulated (50/50) |
| Power assisted steering – Hydraulic |
| Seat type – Comfort |
| Seat adjustment – Single Lever |
| Dashboard – Yes – compact |
| Front wheel size – 16×7 .50-8 |
| Rear wheel size – 16×7 .50-8 |
| PTO engagement – Electromagnetic |
| Storage compartment – Seat column pocket |

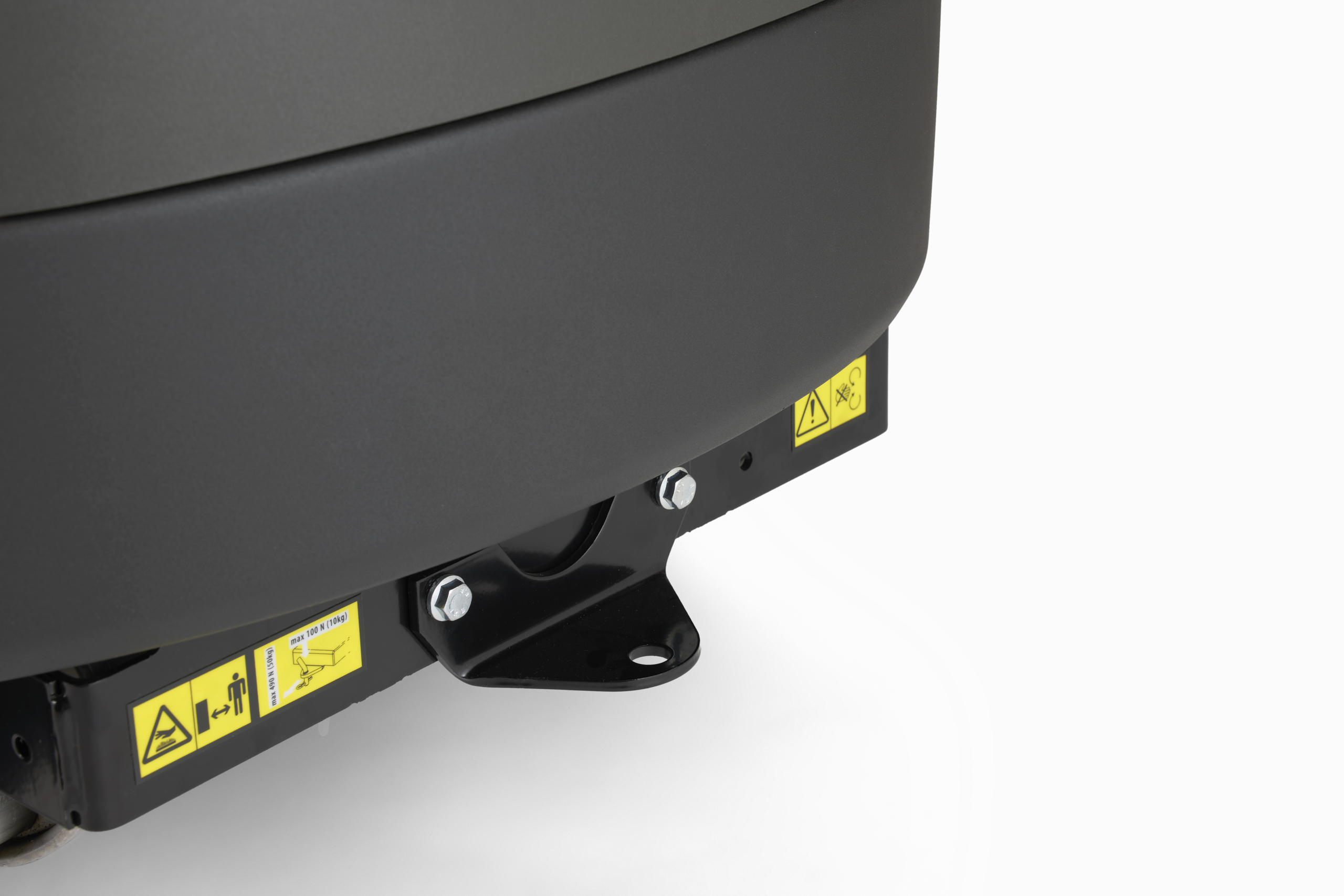

| Trailer hitch kit – Included |
| VIBRATION AND NOISE DATA |
| Guaranteed sound power level (LwA) – dB(A) – 100 |
| Measured sound power level dB(A) – 99 |
| Max vibration on steering wheels (m/s2) – < 3.4 |
| Max vibration on driver’s seat (m/s2) – 0.6 |
| Measured sound pressure level at operator ear dB(A) – 85 |
| OVERALL DIMENSIONS |
| Product weight – 198 kg |
| Pack weight – 242 kg |
| Product length – 1960 mm |
| Product width – 864 mm |
| Product height – 1236 mm |
