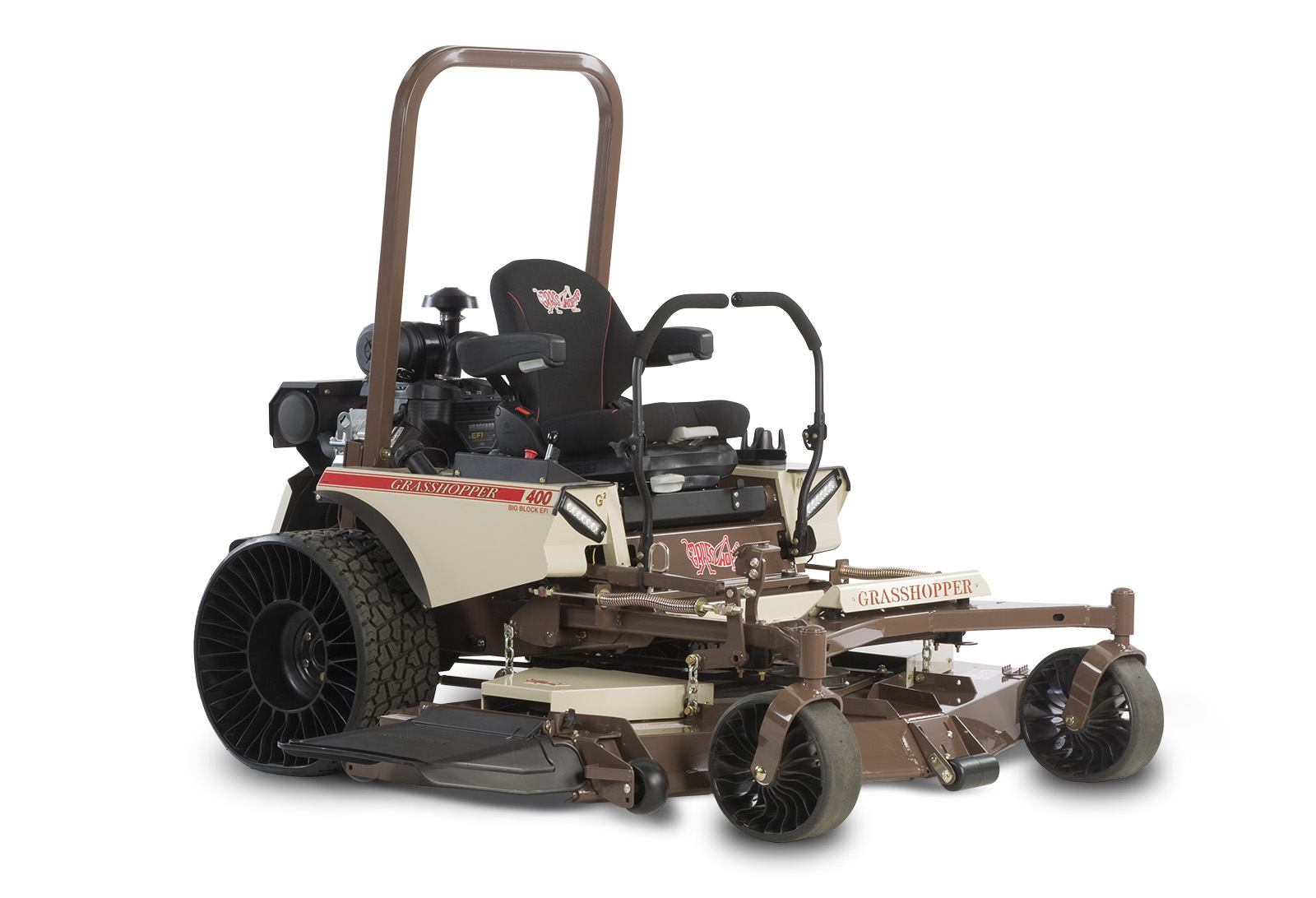

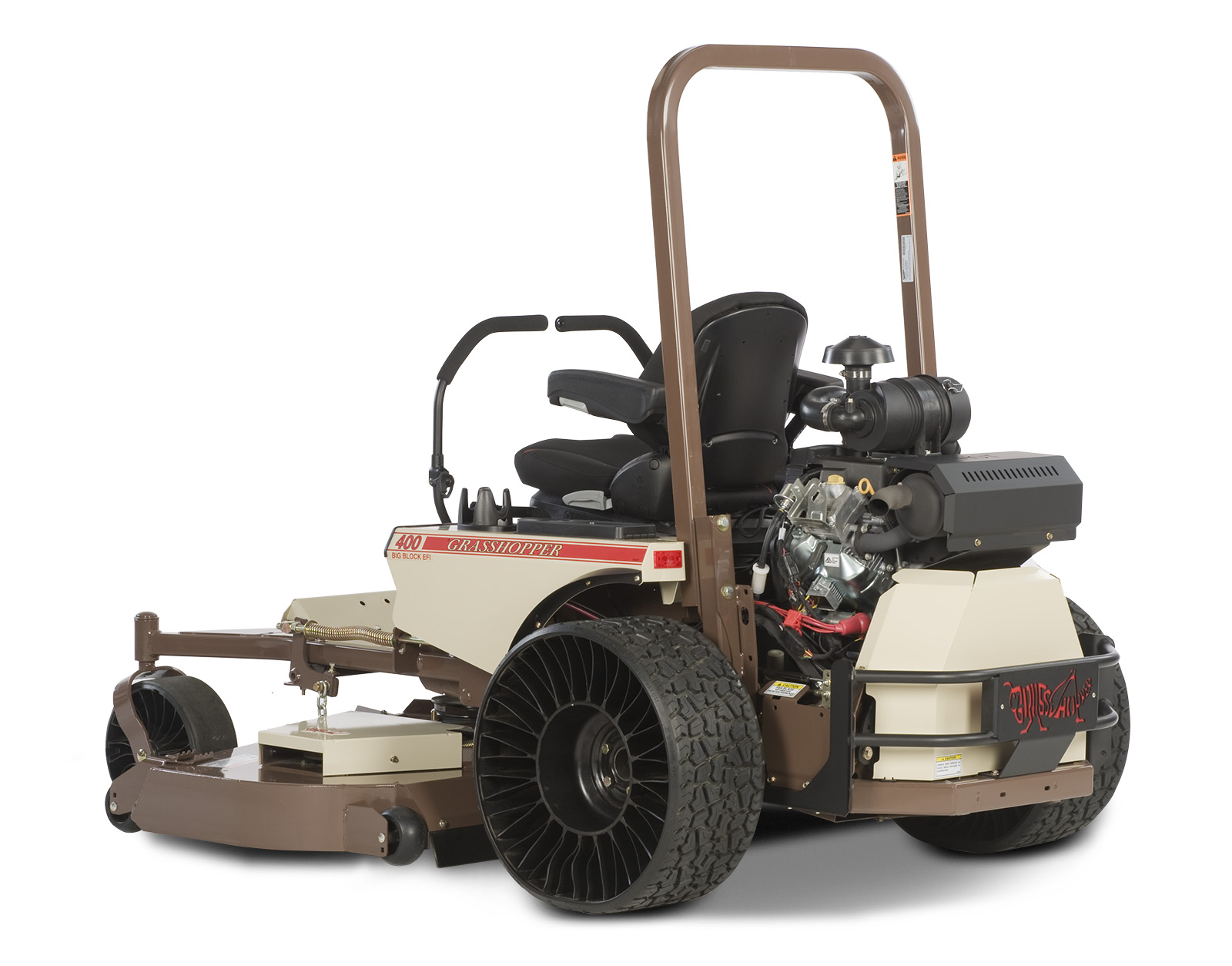

The Grasshopper zero-turn Model 400D 1.3L combines robust power with a compact design, enabling it to efficiently handle the most challenging tasks and provide the pristine cuts that turf care professionals demand.

The Kubota MaxTorque™ Diesel engine features a 1300 cc, 3-cylinder, liquid-cooled design with a horizontal crankshaft and pressure lubrication, ensuring smooth and dependable performance.

The Design-Matched G2 Transmission features a durable system equipped with auxiliary cooling fans, HydroGear 21cc variable displacement piston pumps, and high-torque Parker hydraulic motors at each wheel. It includes the CoolFan™ hydraulic oil cooler with a 7-micron filter for effective cooling. This transmission provides smooth operation and lower maintenance needs, thanks to an extended fluid change interval of 1,000 hours.

The Heavy-Duty Deck features a robust 5.5-inch extra-deep design constructed from heavy-gauge formed steel with a reinforced anvil edge, ensuring durability and stability. Its specially engineered cutting chambers improve airflow for superior cutting performance. The deck is versatile, easily converting from side discharge to optional Down Discharge™ mulching or PowerVac™ collection systems. Equipped with durable Sentry™ spindles featuring large 8-inch flanges mounted on a 6-bolt pattern, they distribute impact forces for enhanced strength. The spindle planes are made from double-layered steel laminate, consisting of 7-gauge and 10-gauge formed steel, totaling 0.3138 inches in thickness—about 25.5% thicker than standard ½-inch steel. Additionally, Sentry™ spindle guards protect the spindle housing and seal lower bearings from fiber wrap and dirt ingress, prolonging component life.

Effortlessly adjust the deck height using the QuikAjust™ Drop Pin system, which allows for precise cutting heights ranging from 1.0 to 5.0 inches with a simple foot pedal and drop pin mechanism.

Hydraulic Height Adjustment for MidMount DuraMax™ decks 61 inches and larger enables operators to seamlessly raise and lower the cutting height to any desired setting using a toggle switch for precise control.

Lower Maintenance Requirements: With just two Access-Eze™ lubrication points, maintenance time can be reduced by up to 95%. Additionally, self-tensioning belts decrease both costs and labor associated with regular upkeep.

With fewer than 10 grease points and convenient top-side access to belts and filters, maintenance is simplified. The transmission fluid only needs to be changed every 1,000 hours, and self-tensioning belts reduce both costs and labor for routine upkeep.

The operational controls, such as the throttle, choke, angled View-Eze™ console, and adjustable cup holder, are strategically placed for clear visibility and easy access. The mower features QuikAjust Tilt™ dual levers, allowing for one- or two-handed operation with a 9-inch comfort range to accommodate different operator preferences. These levers automatically revert to neutral from either forward or reverse, providing intuitive control and reducing effort compared to traditional riding mowers with steering wheels.

The deluxe Premium Comfort Seat offers deep cushioning, coil-spring suspension, and padded lumbar support to ensure comfort throughout the day. Iso-mounting technology reduces vibrations before they reach the user, while the padded seat and foldable armrests are upholstered in durable, breathable CoolTemp Cordura® fabric that dissipates heat and resists tearing or cracking over time. The Ultimate Suspension Ride™ features a spacious, iso-mounted, shock-absorbing footrest for added comfort.

The equipment features a standard, low-profile Roll-over Protection System (ROPS) with a customizable seatbelt for safety. It includes dampened steering levers that smoothly return to neutral from both forward and reverse positions. Interlock switches automatically shut off the engine if the operator leaves the seat with the PTO engaged or levers in drive, enhancing safety. LED work lights improve visibility in low-light conditions. A High-Temperature Clutch Cut-Out automatically disengages the PTO if the engine temperature becomes too high, helping to prevent engine damage.

Sturdy Build. Constructed with robotically-welded steel for exceptional durability and longevity. The centered-bearing design offers increased load capacity to support the operator, fuel, and large-capacity collector, with extra strength to withstand curb impacts and shifting weights. Finished with a tough, powder-coated coating that is fusion-bonded, providing superior resistance to chips and rust.

Warranty: Commercial Use: 3-year unlimited hours; limited warranty covering parts and labor. Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
